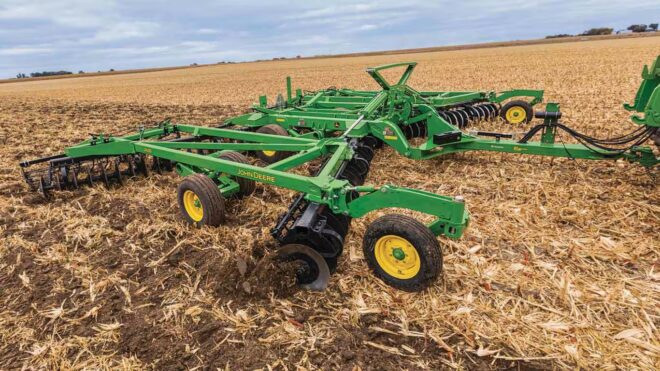

2630 Tillage Equipment
2630 Tillage Equipment
Three- and Five-Section Tandem Disks
- Perfect for light to medium soils, seedbed prep
- TruSet™ Active improves tillage depth accuracy and makes adjustments for varying field conditions, such as tire sink in soft soils or residue build up on tires, with no need for operator input
- Knife-edge Rolling Basket
- Extended-Life Bearing
Hot Line
111-0000-1111
Product Introduction
The John Deere 2630 Series offer three disk models that provide a wide range of variety for all tillage applications.
| Model | 2630 Disk | 2633 Disk | 2635 Disk |
| Purpose | Secondary (light duty) | Dual purpose (medium duty) | Primary (heavy duty) |
| Working depth | Up to 130 mm (5 in.) | Up to 180 mm (7 in.) | Up to 200 mm (8 in.) |
| Weight per blade | Minimum 68 kg (150 lb) | Under 13.4 m (44 ft) Minimum 86 kg (190 lb) Over 13.4 m (44 ft) Minimum 91 kg (200 lb) |
Minimum 127 kg (280 lb) |
| Blade size | 560 or 610 mm (22 or 24 in.) |
610 or 660 mm (24 or 26 in.) |
610 or 660 mm (24 or 26 in.) |
| Blade spacing | 185 or 230 mm (7.25 or 9 in.) |
230 mm (9 in.) | 230 mm (9 in.) front and 280 mm (11 in.) rear, or 280 mm (11 in.) |
| Horsepower | 23 to 36 hp/m (7 to 11 hp/ft) | 23 to 36 hp/m (7 to 11 hp/ft) | 26 to 36 hp/m (8 to 11 hp/ft) |
| Working widths | 6.3 m to 15.0 m (20.75 ft to 49.25 ft) |
6.3 m to 15.0 m (20.75 ft to 49.25 ft) |
7.2 m to 12.4 m (23.58 to 40.66 ft) |
| Operating speed | 6.5 to 11.3 km/h (4 to 7 mph) |
6.5 to 11.3 km/h (4 to 7 mph) |
6.5 to 11.3 km/h (4 to 7 mph) |
| Recommended use |
|
|
|
