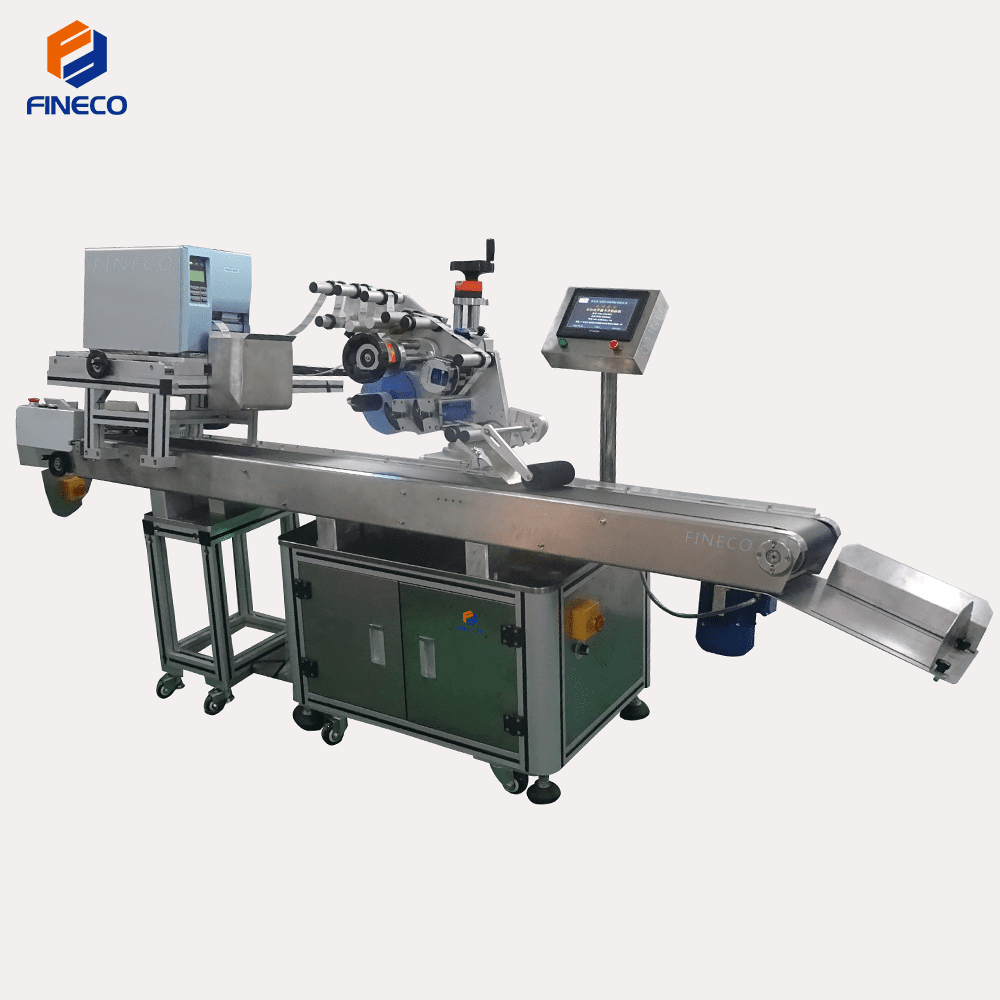

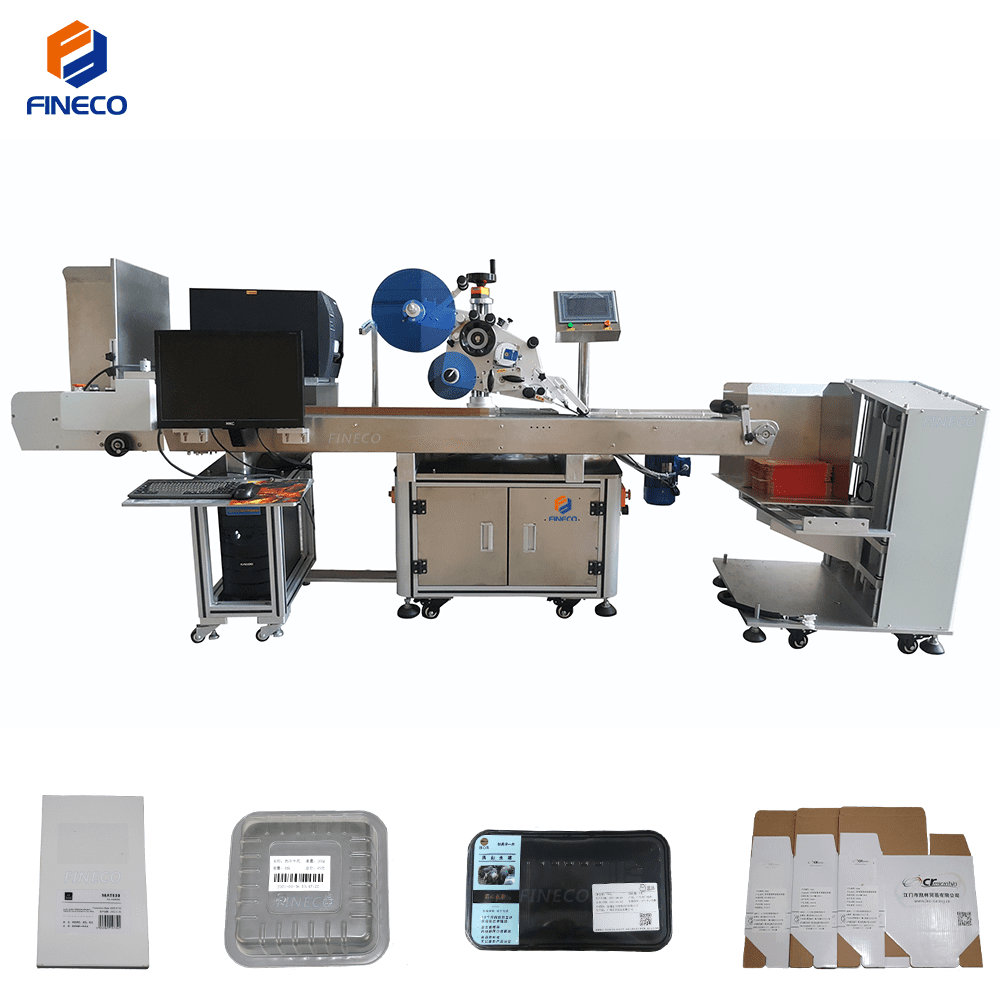

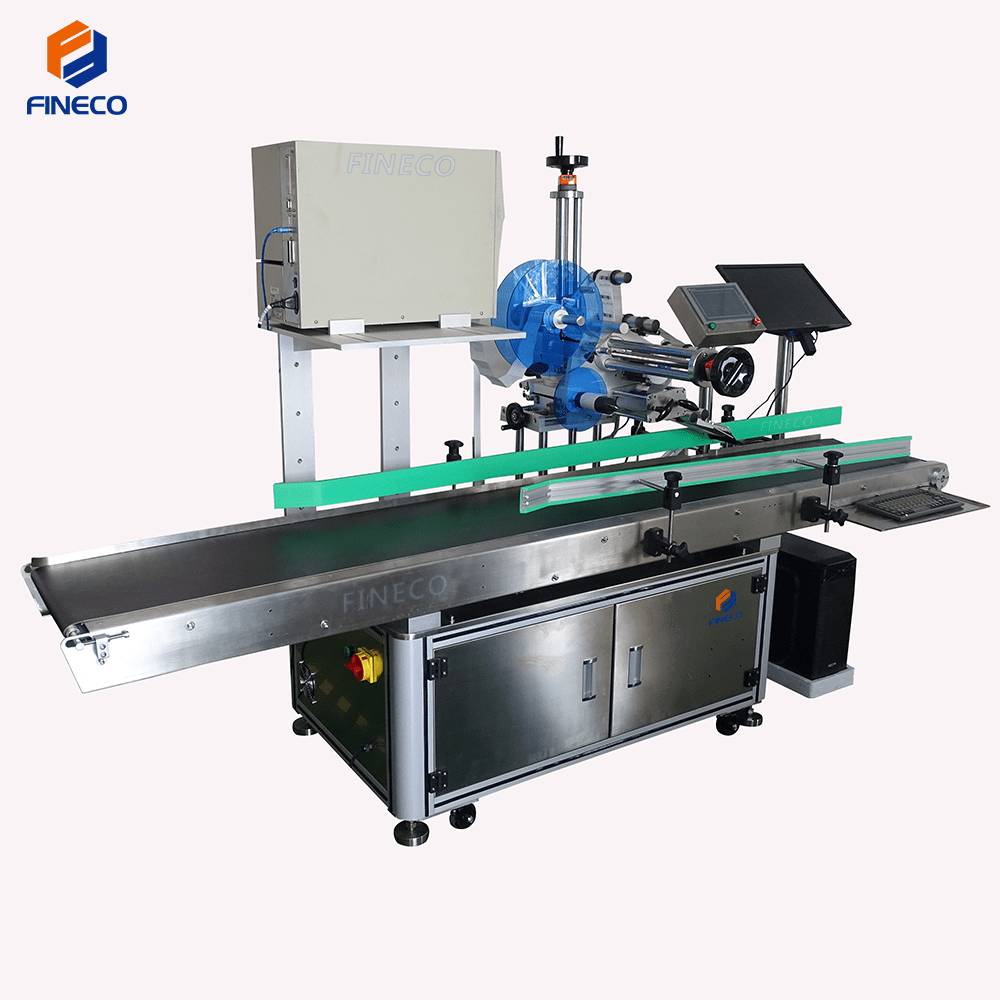

FKP-601 Labeling Machine With Cache Printing Label

FKP-601 Labeling Machine with cache printing label is suitable for flat surface printing and labeling. According to the scanned information, the database matches the corresponding content and sends it to the printer. At the same time, the label is printed after receiving the execution instruction sent by the labeling system, and the labeling head sucks and prints For a good label, the object sensor detects the signal and executes the labeling action. High-precision labeling highlights the excellent quality of products and enhances competitiveness. It is widely used in packaging, food, toys, daily chemical, electronics, medicine and other industries.

Hot Line

111-0000-1111

Product Introduction

FKP-601 Online Cache Print Labeling Machine has additional functions to increase options:

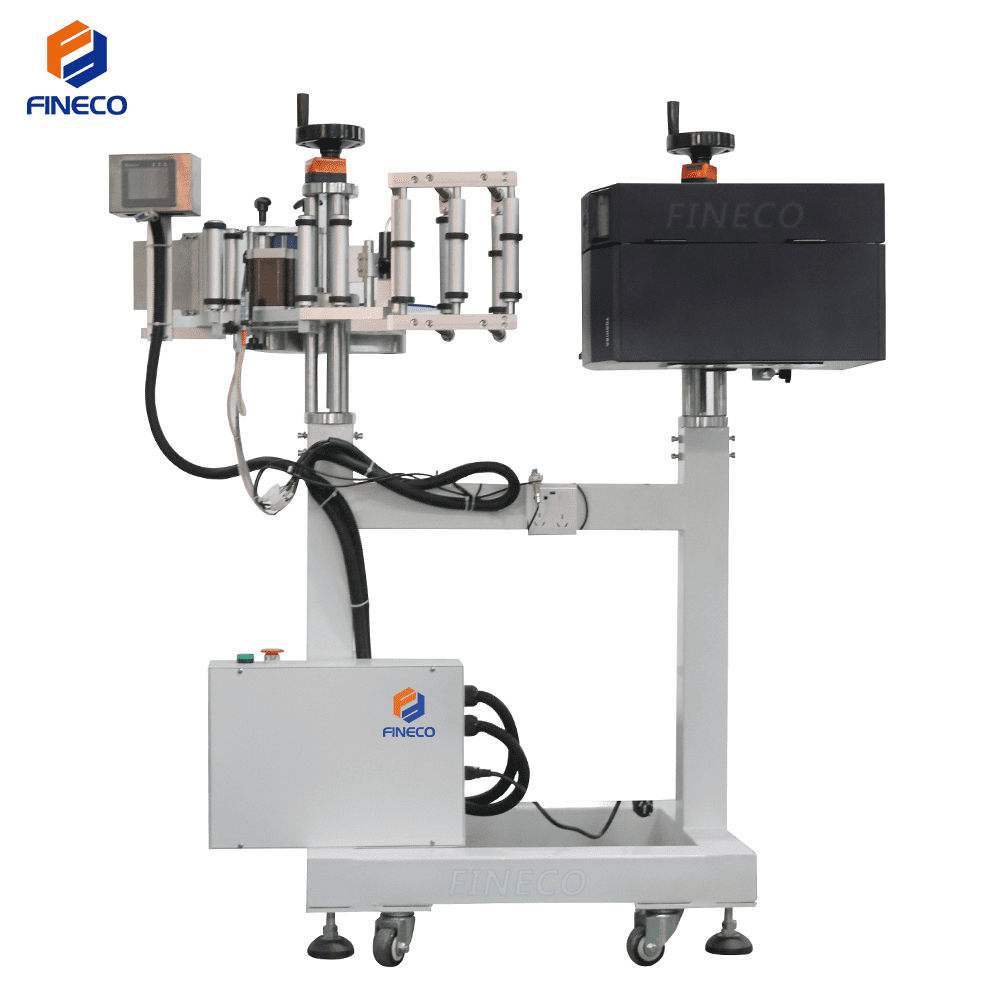

1. An optional ribbon coding machine can be added to the label head, and the production batch, production date and expiration date are printed at the same time. Reduce packaging process, greatly improve production efficiency, special label sensor.

FKP-601 Online Cache Print Labeling Machine is suitable for products that require large output, with high labeling accuracy of ±0.1mm, fast speed and good quality, and it is difficult to see the error with the naked eye.

FKP-601 Online Cache Print Labeling Machine covers an area of about 2.38 cubic meters.

Support custom labeling machine according to the product.

Technical Parameters:

Parameter	Data
Label Specification	adhesive sticker, transparent or opaque
Labeling Tolerance(mm)	±1
Capacity(pcs/min)	15 ~40(According to product size)
Suit product size(mm)	L: 50 ～ 1500； W:20 ～ 300; H:≥0.2 (Can customization)
Suit label size(mm)	L: 50 ~ 250; W(H): 10 ~ 100(Can customization)
Machine Size(LWH)(mm)	≈16509001400
Pack Size(LWH) (mm)	≈17009501450
Voltage	220V/50(60)HZ;Can be customized
Power(W)	1020
N.W (KG)	≈220
G.W(KG)	≈240
Label Roll	ID: ＞76; OD:≤280
