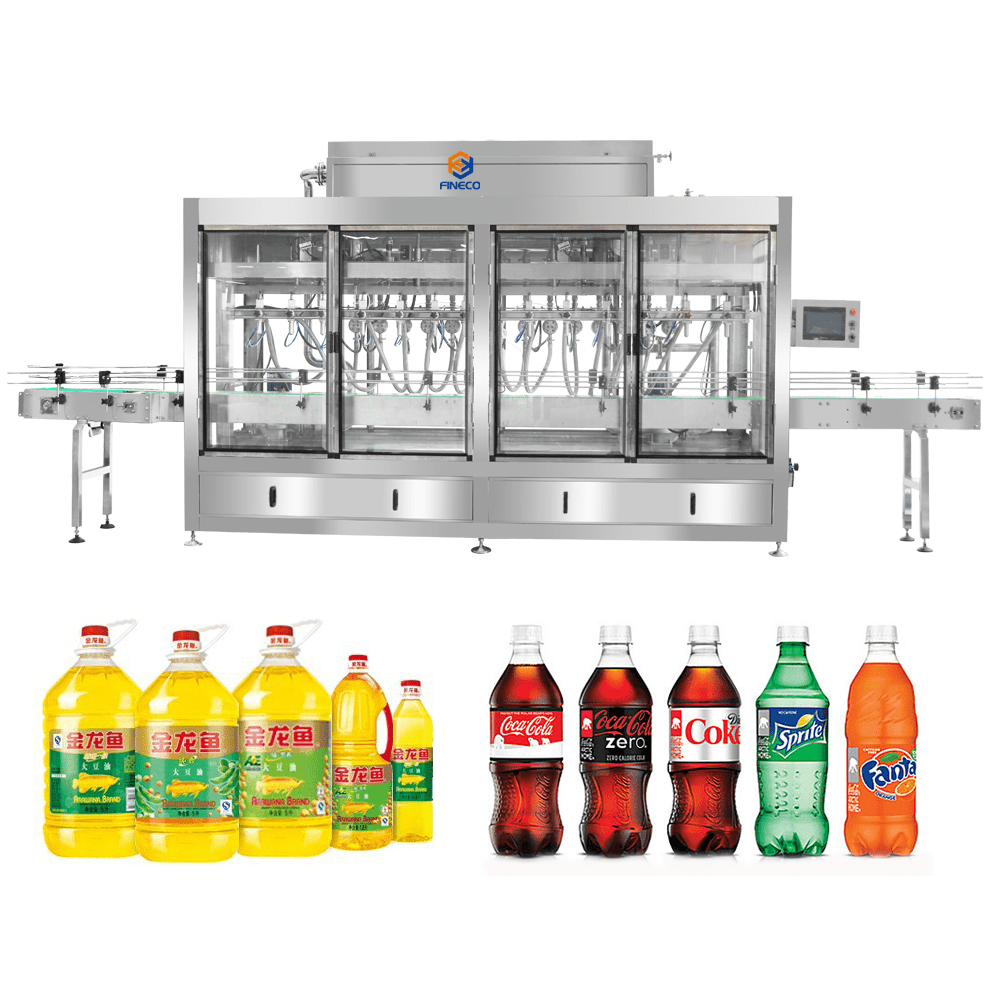

FKF805 Flow Meter Precise Quantitative Filling Machine
FKF805 Flow Meter Precise Quantitative Filling Machine
FKF805 Flow Meter Precise Quantitative Filling Machine. The filling head and flow meter is made of 316L stainless steel, Can hold a variety of corrosive low viscosity particle free liquids. The machine has suction structure, It has the function of anti-drip, anti-splash and anti-wire drawing. To meet customers’ different sizes and types of bottle filling needs.The machine can be used for regular round, square and flat bottles.
FKF805 Can adapt to the liquid filling of a large part of the product, such as pharmaceutical (oil, alcohol, alcohol, eye drops, syrup), chemicals (solvent, acetone), oil (edible oil, essential oil), cosmetics (toner, makeup remover, spray), food (can withstand 100 degrees of high temperature, such as milk, soy milk), drinks (juice,Fruit wine), condiments (soy sauce, vinegar, sesame oil) and other non-granular liquid;High-low foam liquid (care solution, detergent). No matter large or small volume can be filled.
Hot Line
111-0000-1111
Machine Description
①FkF805 is suitable for all kinds of Paste, high viscosity liquid, low viscosity liquid, water and other filling, Filling capacity:0.38~6L (If it is larger than 6 liters, it needs to be customized).
②FKF805 The way of debugging is very simple, you just need to change different products, the height of the filling head up or down to match the product, and then on the touch screen input to fill the capacity and product spacing, very user-friendly.
③FKF805 It can be customized to your needs.
④We can provide you with matching capping machine and labeling machine, and Make a production line directly for you
Work Process

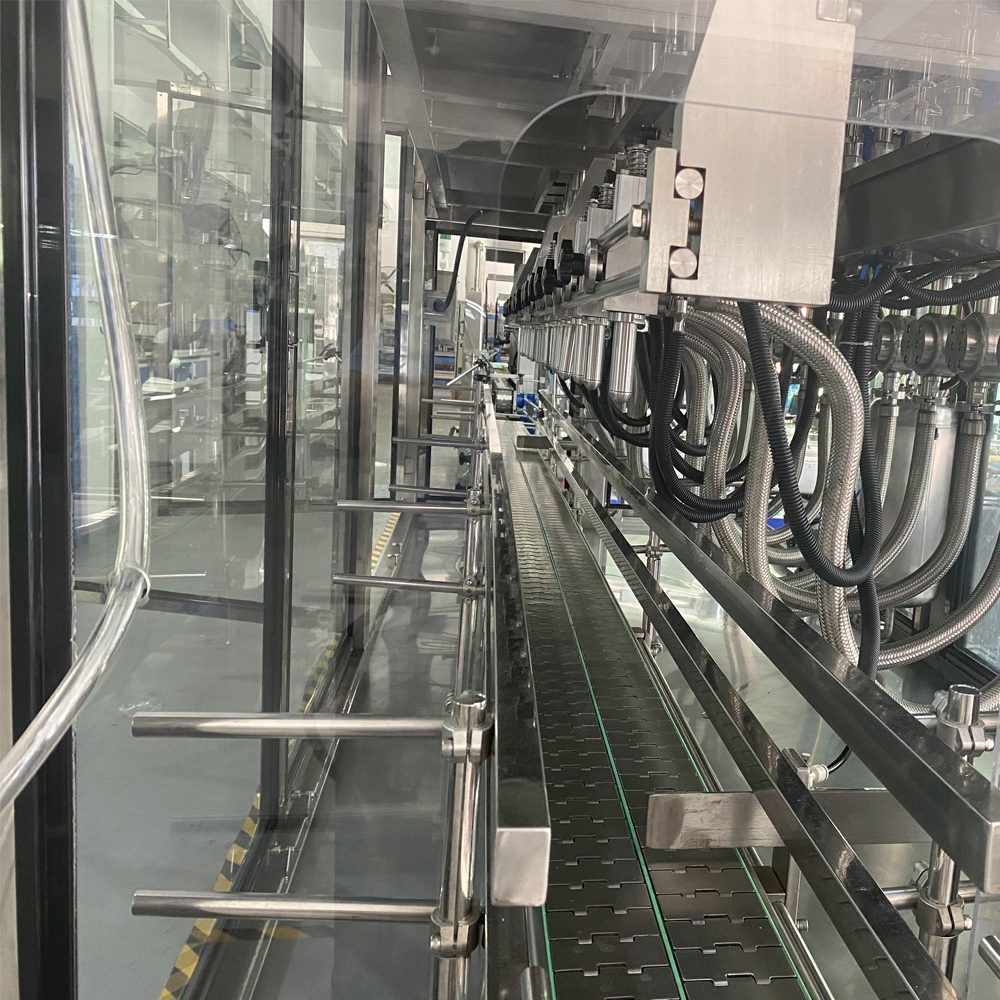

Start the machine at the touch screen, and when the bottle flows under the filling head, the filling head moves down and starts filling. After filling, the filling head moves, and the reflow function starts, and the material in the filling head flows back to the pipeline, a filling process is completed.
Liquid requirements
1. The machine can not fill particles and powder;
2. Some very thick paste can not be filled, such as lipstick, lipstick needs to use another filling machine to complete filling.;
Machine parameter
| Parameter | Data |
| Filling material | Materials other than powders, particles and very viscous liquids |
| Filling Tolerance | ±l% |
| Filling Capacity(L) | 0.38 ~ 6 |
| Suit bottle size(mni) | According to your need; |
| Speed(bottle/min) | One filling head : 175~250;(Determine how many filling heads are used in the machine according to your production and requirements) |
| Quantitative way | Flowmeter |
| Machine Size(mm) | Listed in the next table |
| Voltage | 380V/50(60)HZ;(Can be customized) |
| Power(KW) | 5 |
| N.W (KG) | 2000 |
| G.W(KG) | 2300 |
| Additional functionality | Anti-drip, anti-splash and anti-wire drawing; High precision; Will not corrode |
| Number of filling head | Filling Speed(bottle/h) | Machine Size(L*W*H) | Conveyor Size(mm) |
| 2 | 350-500(2L bottle test) | 680*960*2235(mm) | 3000 |
| 4 | 700-1000(2L bottle test) | 1280*1540*2235(mm) | 6000 |
| 6 | 1000-1500(2L bottle test) | 1720*1540*2235(mm) | 8000 |
| 8 | 1500-2200(2L bottle test) | 1880*1540*2235(mm) | 9000 |
| 10 | 1400-1600(5L bottle test) | 2200*1540*2235(mm) | 10000 |
| 12 | 1600-1800(5L bottle test) | 2880*1540*2235(mm) | 10000 |
Features:
1 ) Control System: Japanese Panasonic control system, with high stability and extremely low failure rate.
2 ) Operation System: Color touch screen, directly visual interface easy operation.Chinese and English available. Easily to adjust all electrical parameters and have counting function, which is helpful for production management.
3) Detection System: Using German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor, which are sensitive to label and product, thus ensure high accuracy and stable labeling performance. Greatly saves labor.
4) Alarm Function: The machine will give an alarm when problem occur, such as label spill, label broken, or other malfunctions.
5) Machine Material: The machine and spare parts all use material stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.
6) Equip with a voltage transformerto adapt to local voltage.
