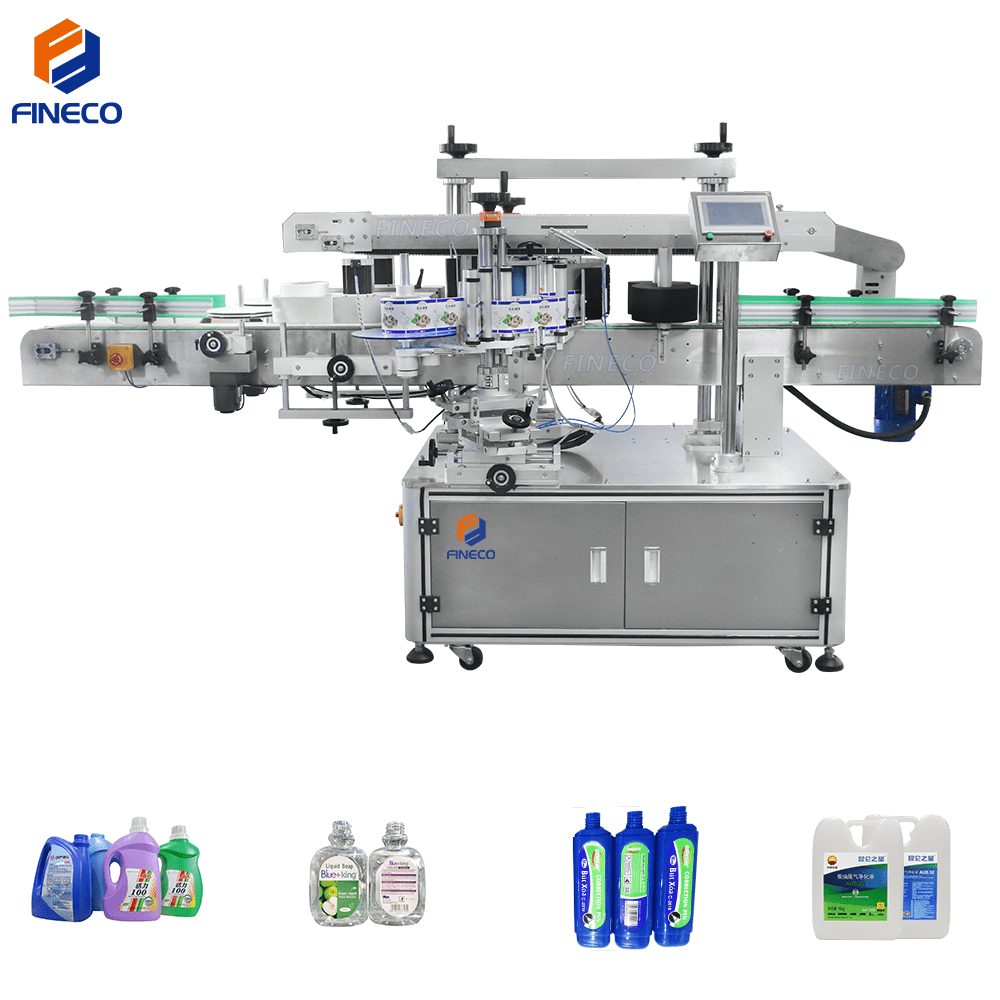

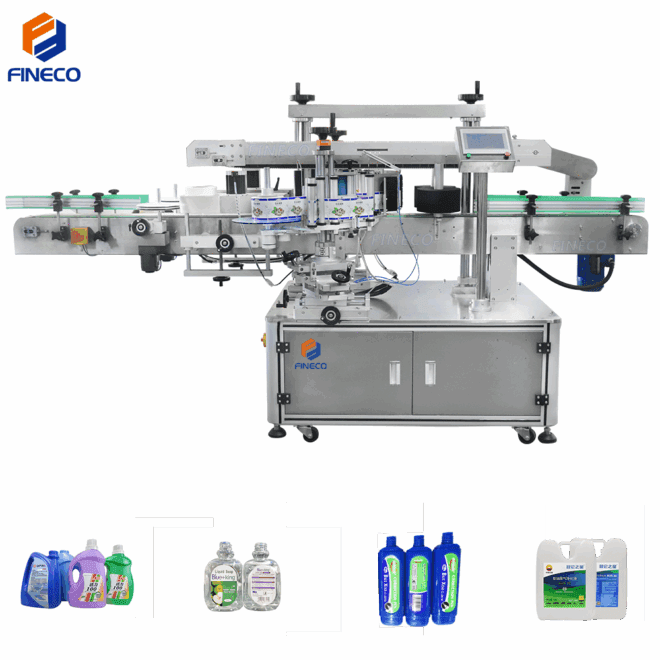

FK911 Automatic Double-sided Labeling Machine

FK911 automatic double-sided labeling machine is suitable for single-sided and double-sided labeling of flat bottles, round bottles and square bottles, such as shampoo flat bottles, lubricating oil flat bottles, hand sanitizer round bottles, etc. , Both sides are attached at the same time, double labels improve production efficiency, high-precision labeling, highlight the excellent quality of products, and improve competitiveness. It is widely used in daily chemical, cosmetics, petrochemical, pharmaceutical and other industries.

Hot Line

111-0000-1111

Product Introduction

FK911 automatic double side labeling machine has additional functions to increase options:

① An optional ribbon coding machine can be added to the label head, and the production batch, production date and expiration date can be printed at the same time. Reduce packaging process, greatly improve production efficiency, special label sensor.

② Automatic feeding function (combined with product consideration);

③ Automatic material collection function (combined with product consideration);

④ Increase other labeling device;

Technical Parameters:

Parameter	Date
Label Specification	Adhesive sticker,transparent or opaque
Labeling Tolerance	±1mm
Capacity(pcs/min)	30~180
Suit bottle size(mm)	L:40~400; W:40~200 H:0.2~150;Can be customized
Suit label size(mm)	L:6~150;W(H):15-130
Machine Size(LWH)	≈300014501600(mm)
Pack Size(LWH)	≈305015001650(mm)
Voltage	220V/50(60)HZ;Can be customized
Power	2000W
N.W(KG)	≈330.0
G.W(KG)	≈400.0
Label Roll	ID:＞76mm; OD:≤280mm

Working Principle:

1. Click star on the touch screen.

2. The product placed next to the guardrail, then the conveyor belt moves the products forward.

3. When the sensor detects that the products has reached target location, the machine will send out the label and the roller attaches half of the label to the product.

4. Then when the products is labeled and reaches a certain position, the brush will pop out and brushes the other half of the label onto the product, achieve corner labeling.
