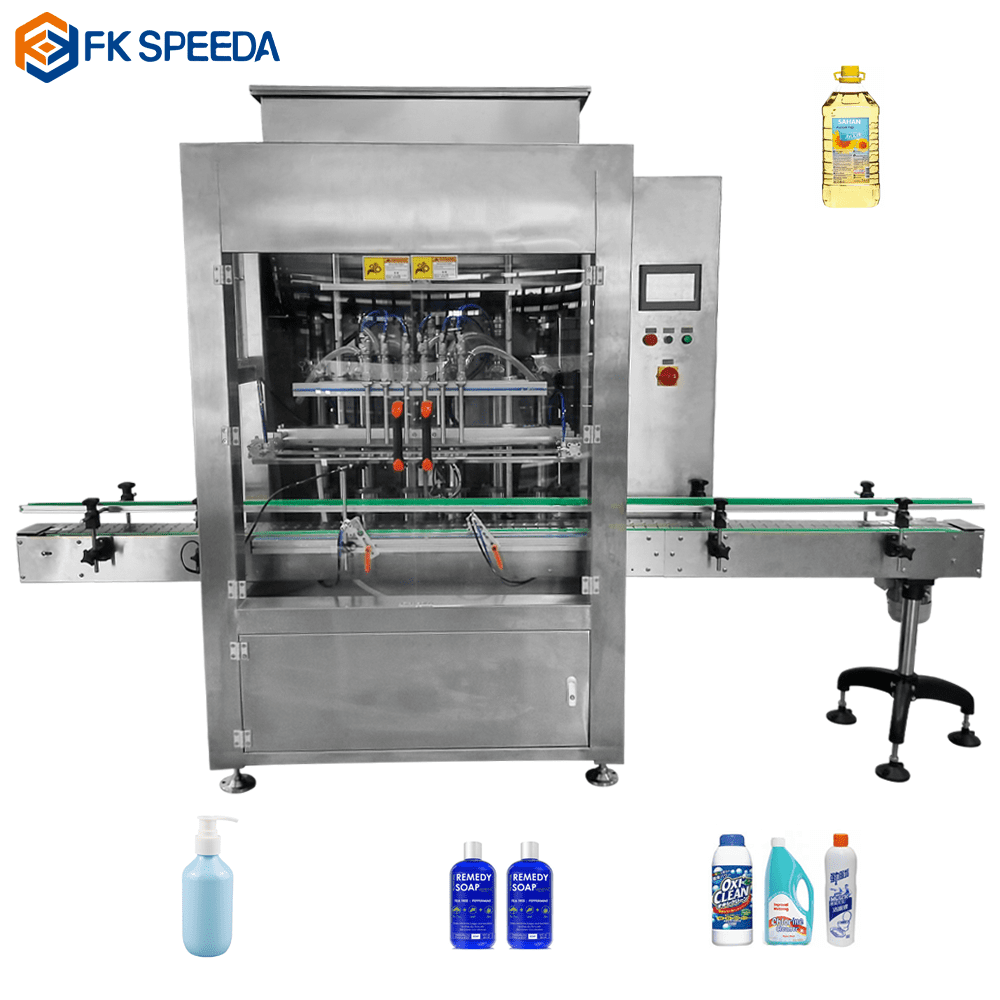

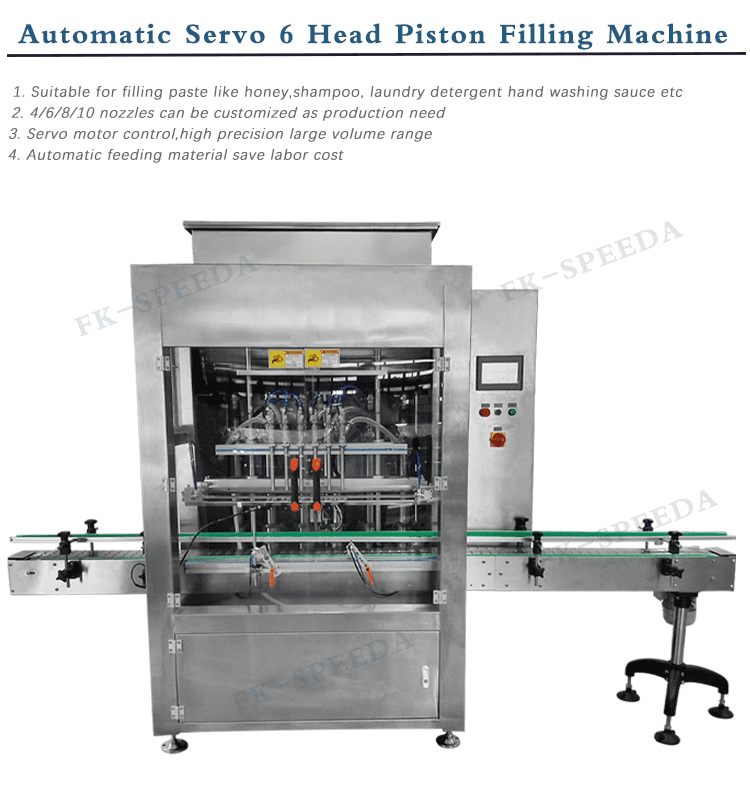

Automatic servo 6 head filling machine

Automatic servo 6 head filling machine,It is suitable for filling equipment of various bottle types with strong fluidity and certain viscous and fluid liquids, such as: liquid filling with equal water quality and fluidity, 6-head linear filling, widely used in Daily chemical, petrochemical, pharmaceutical food, and other industries.

1.Applicable filling materials: honey, hand sanitizer, laundry detergent, shampoo, shower gel, etc. (Standard equipment uses 304 stainless steel for the contact material part, please note if there is high-strength corrosive filling liquid)

2. Applicable products: round bottle, flat bottle, square bottle, etc.

3.Application industry: widely used in cosmetics, daily chemical, petrochemical, and other industries.

4. Application examples:hand sanitizer filling, laundry detergent filling, honey filling,filling, etc.

Hot Line

111-0000-1111

Product Introduction

Machine Parameter

Applicable filling diameter (mm)	≥15mm
Applicable filling range (ml)	100ml~1000ml (larger filling capacity can be customized)
Applicable product size (length × width × height)	L: 40mm ~ 140mm;W: 40mm～114mm;H: 100mm～400mm
Filling accuracy (ml)	1%
Production speed (pcs/h)	1500~3000pcs/h
Weight (kg)	about 360kg
Frequency (HZ)	50HZ
Voltage (V)	AC380V
Air pressure (MPa)	0.4-0.6MPa
Power (W)	2.9KW
Equipment dimensions (mm), (length × width × height)	3023 × 1132 × 2497mm

Functional characteristics:

◆Easy to operate, easy to operate the machine, fool-like equipment, easy to use and easy to debug. To change products of different specifications, you only need to adjust the width of the conveying guardrail and the spacing of the filling heads according to the bottle type, and set the filling amount on the touch screen.

◆ Adopt servo motor two-speed filling function, fast first and then slow, to prevent liquid from splashing;

◆ The filling speed and filling volume can be directly input on the display screen, and the filling can be done without adjusting the mechanical parts.

◆Intelligent control, automatic photoelectric tracking, no filling if there are no bottles, no filling if there are less than 6 bottles in the filling mechanism, and automatic filling and cleaning of pipes and air exhaust.

◆ The main materials of the equipment are stainless steel and high-grade aluminum alloys, which conform to GMP production specifications. The overall structure is firm and beautiful.
