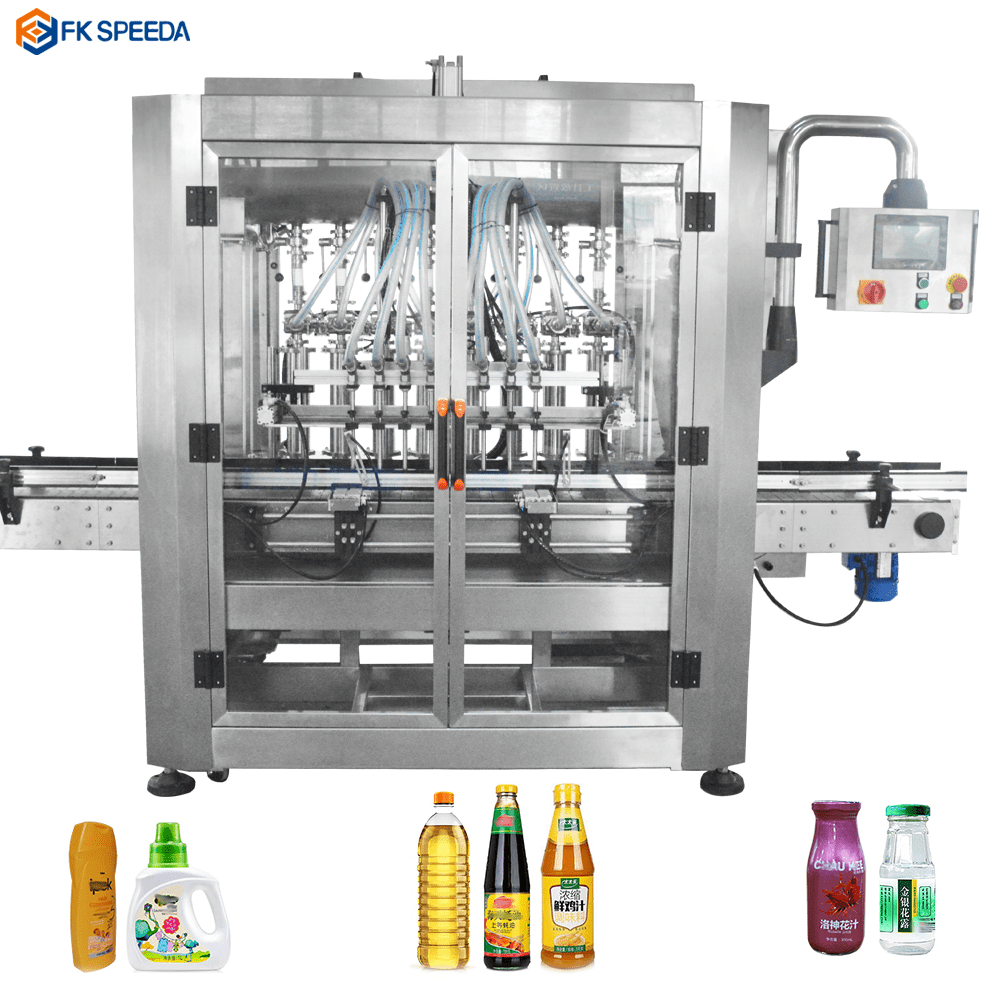

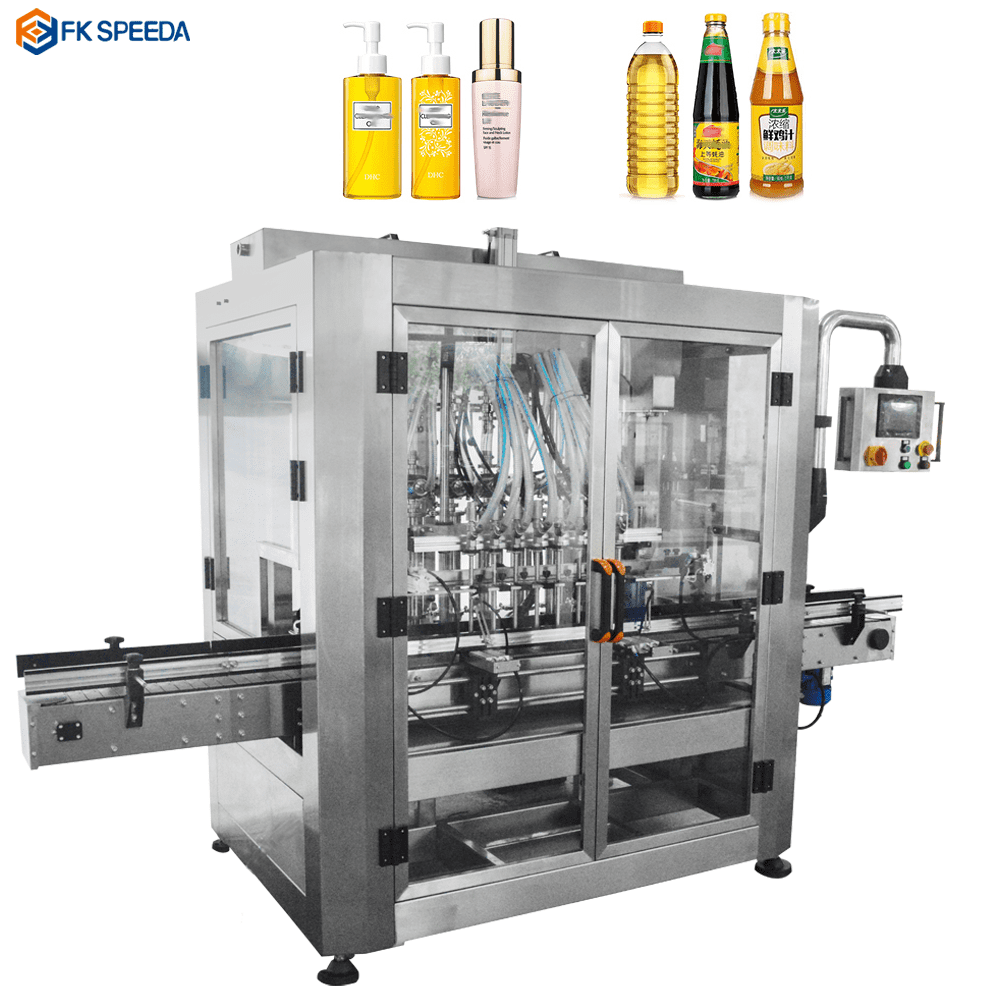

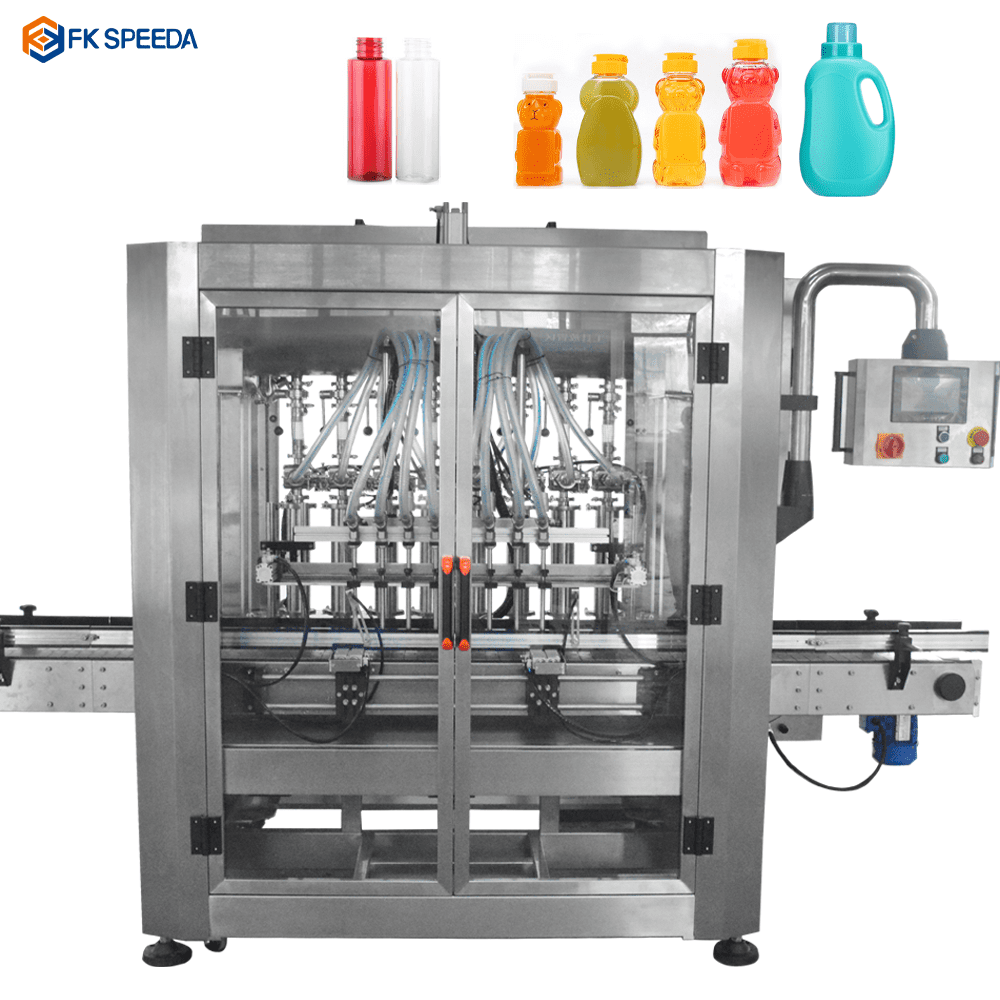

Automatic 8 heads piston filling machine (Support customization)

Automatic viscous liquid filling machine

applied range：

The automatic piston filling machine adopts the principle of plunger quantitative filling. Bottle feeding, positioning, filling and discharging are all automatically controlled by PLC, which conforms to GMP standards. It is suitable for liquid filling of medicine, food, daily chemicals, pesticides and fine chemicals.Widely used in filling various oils and viscous liquids such as : paint,edible,oil,honey,cream,paste,sauce,lubricating oil, daily,chemicals and other liquid products.

Support customization.

Hot Line

111-0000-1111

Product Introduction

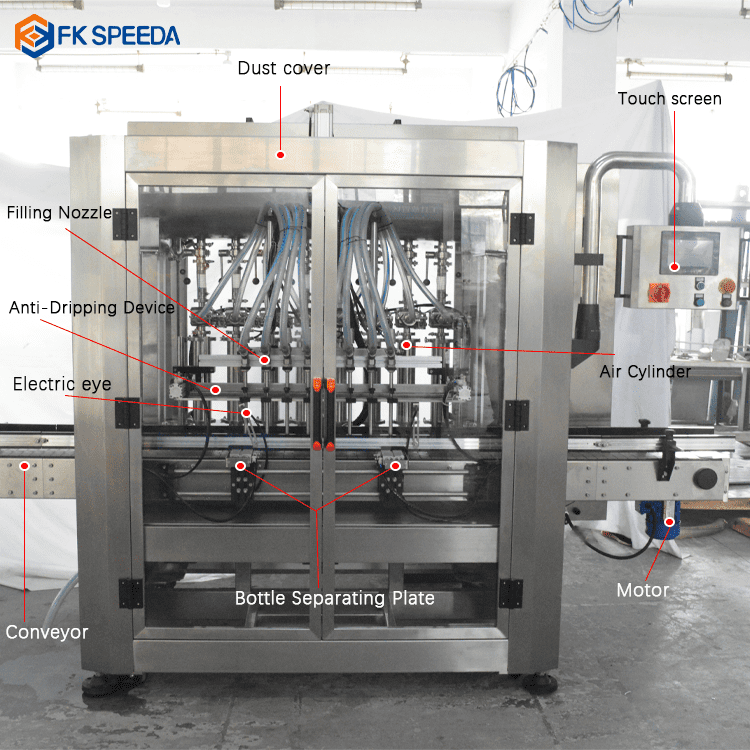

Machine Description

1.Simple structure in linear type ,easy in installation and maintenance.

2.Piston filling method, accurate and stable, suitable for thick material.

3.The filling range and speed can be designed according to user needs to design different filling head number.

4.Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.WEINVIEW touchscreen,MITSUBISHI PLC,CHNT switch,etc.

5.The whole machine is made of SS304 material,can meet the requirement of GMP.

6.Can be used for filling containers of different capacities and shapes without the need for additional replacement parts.

7.It can be used alone or connected to production lines, and can be combined with capping machine, labeling machine, date printer,etc. 8.Easy to clean,all material contact part can be quick disassemble and cleaning.

Machine Parameter

Number of filling heads	4pcs	6pcs	8pcs
Filling capacity (ML)	50-500ml	50-500ml	50-500ml
Filling speed (BPM)(BPM)	16-24 pcs／min	24-36pcs／min	32-48pcs／min
Power supply (VAC)	380V/220V	380V/220V	380V/220V
Motor power (KW)	2.8	2.8	2.8
Dimensions(mm)	2000x1300x2100	2000x1300x2100	2000x1300x2100
Weight (KG)	450	550	650
