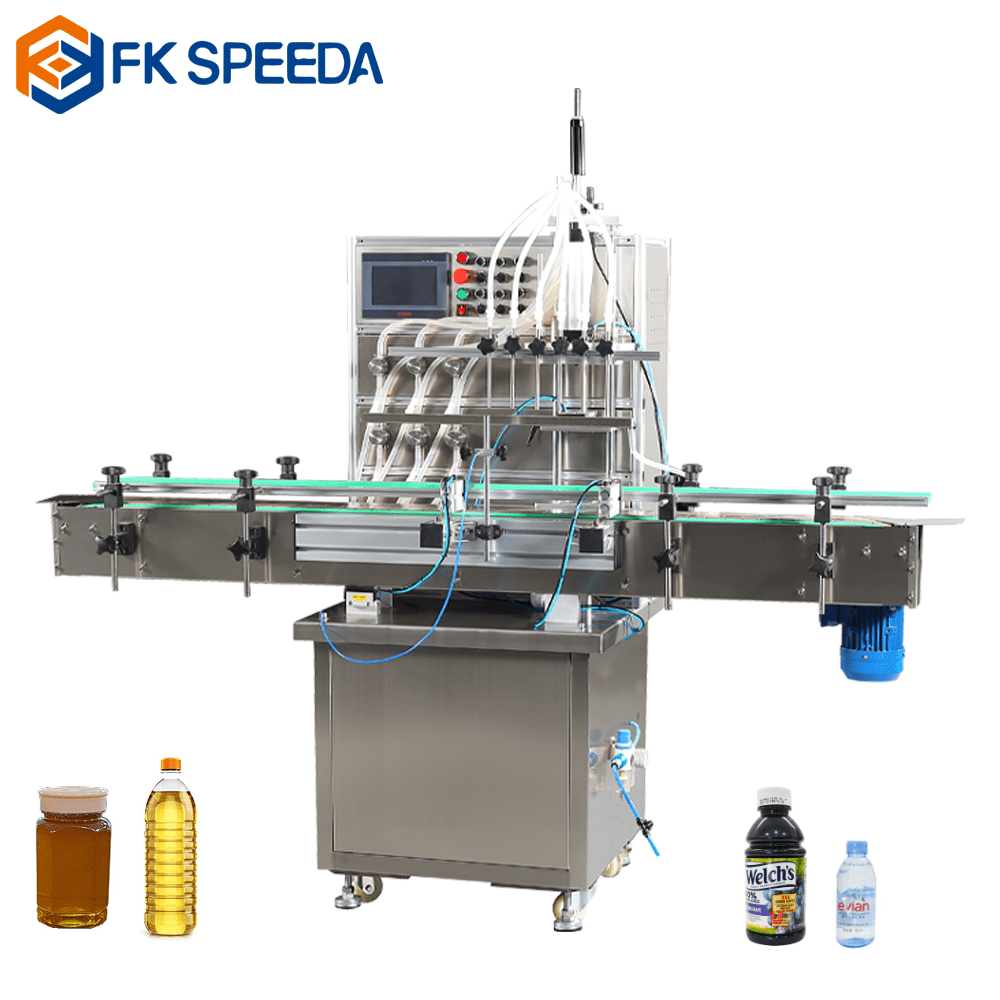

Automatic 6 head liquid filling machine

1.FKF815 Automatic 6 head liquid filling machine. The filling head and flow meter is made of 316L stainless steel, Can hold a variety of corrosive low viscosity particle free liquids.

2.Normally packaged in wooden case or wrapping film, also can be customized.

3.The machine is suitable for all liquid, sauce, gel except the liquid as thick as dough.

Hot Line

111-0000-1111

Product Introduction

Machine description:

It is widely used in all kinds of corrosive resistant low viscosity fluid, such as: all kinds of reagents (medicine oil, wine, alcohol, eye drops, syrup), chemicals (solvents, acetone), oil (feed oil, essential oils, cosmetics (toner, makeup water, spray), food (high temperature resistant to 100 degrees, such as milk, soy milk), beverages, fruit juice, fruit wine, spices, soy sauce vinegar, sesame oil, etc without granular liquid;High and low foam liquid (nursing liquid, cleaning agent)

* Filling of food, medical,cosmetic,chemical and other bottle liquids. Plus:wine,vinegar, soy sauce, oil,Water,etc.

* Widely used in food, cosmetic, chemical, pharmaceutical and other industries.It can work alone or connect to production line.

*Support customization.

Machine Parameter:

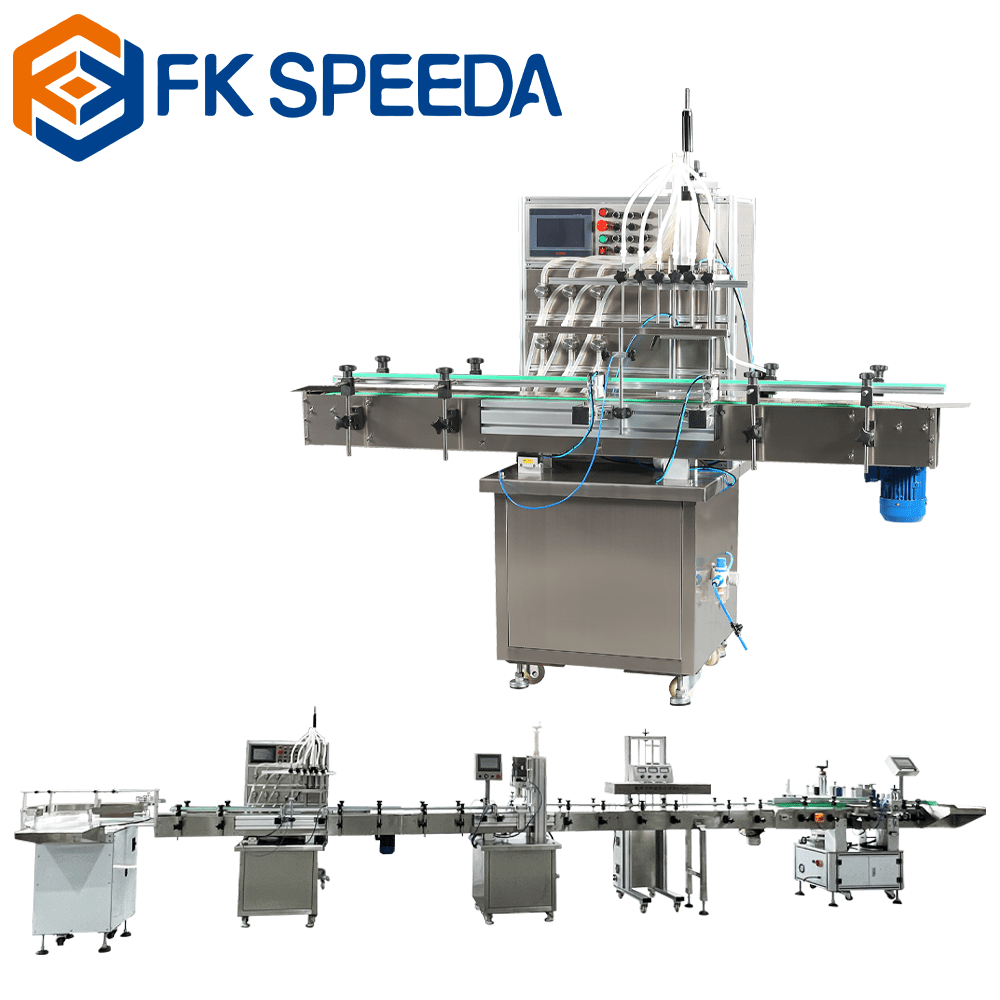

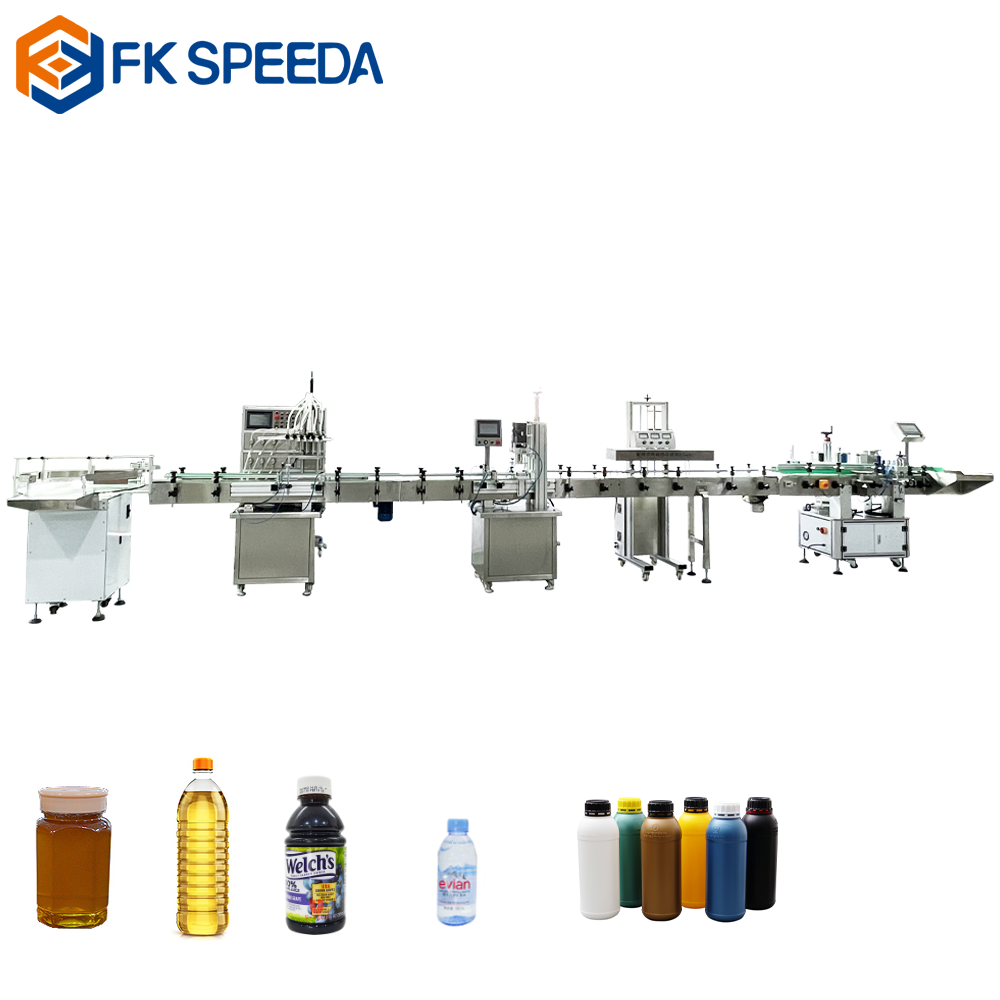

Six – head magnetic pump automatic filling line
parameter configuration:
Metering method	Time and speed adjustment, suitable for almost all liquid products.
Container size	Phi :20-30-350 mm; H:160mm
Packaging weight	>= 2g
Packing precision	Packing weight≤100g deviation≤±1g; Packing weight>100g deviation≤±1%(test is based on water)
packing speed	25-60 cans/min
power supply	single-phase 220 v, 50 hz
Machine weight	150 kg
machine power	1Kw
machine volume	2000×1000×1400mm
Magnetic pump flow range	10-5500 ml/min (take water as an example). Each working pump is separately controlled.The test is based on sending sample bottles.
Filling volume	10-2000ml
