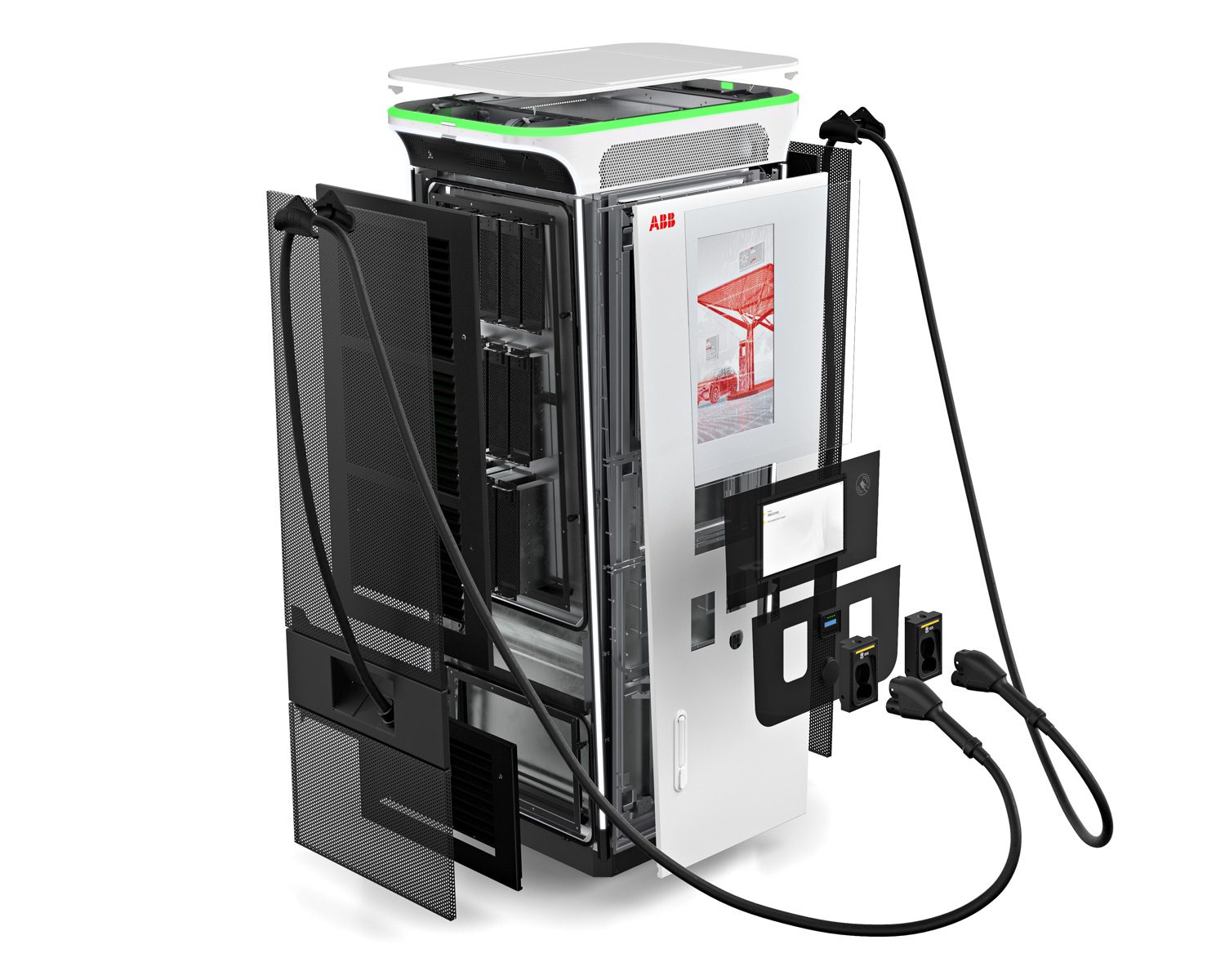

Terra 360 Electric Vehicle Charger

Unbeatable power

One of the fastest car charger with 360 kW of power available
Adding 100 km in less than 3 minutes

Serving up to 2 vehicles simultaneously using dynamic power allocation

Unmistakable presence

LED lighting indicating availability of charger and charging status
Easy branding and color customization
Large LCD screen for advertising
Intuitive user interface

Easily accessible

5 meter long cable reach
Easy accessible for wheelchair users
Plug & Charge functionality
User-friendly cable retraction system

Full flexibility

Compact footprint fitting small urban spaces
Drive-through or frontal parking
CCS, CHAdeMO, and AC charging standards supported
Customizable design

Hot Line

111-0000-1111

Product Introduction

Technical specification
Terra 360 CC Terra 360 CJ (Japan only)
Connector
Charging standard (IEC 61851-1) Mode 4
Number of outputs 2
Number of EV served Up to two EV in parallel
Output combinations Cable with connector CCS 2 Cable with connector CCS 2
Cable with connector CHAdeMO
Cable type Air cooled
Cable Length Standard: 4.7 m
Efficiency > 95% at nominal output power
DC output
DC output power 360 kW (peak) 360 kW (peak)
DC output voltage CCS 150 – 920 VDC CCS 150 – 920 VDC
CHAdeMO 150 – 500 VDC
DC output current Nominal 300 A DC / Peak 500 A DC CCS: Nominal 300 A DC / Peak 500 A DC
CHAdeMO: Nominal 200 A
AC intput
Input connection 3 Phases + PE
Input voltage 400 V AC +/- 10% (50 Hz)
Input frequency 50 Hz
Input Current 560 A
Input power 390 KVA
Power Factor > 0.96 ( at full load)
Harmonic Distortion (THDi) 4.5% at full output power
Earthing systems TN-S, TN-C, TN-C-S, TT (with upstream RCD)
Standby power 80 W, excluding the heater
Overvoltage category (1) Type III
Protection Overcurrent, overvoltage, undervoltage, ground fault including DC leakage protection, overtemperature,
integrated surge protection
Short circuit current 25 kA
Mechanical
Dimensions (H x W x D) 2215 x 1210 x 764 mm
Mounting Type Floor mounted
Weigth 848 kg
Enclosure type Stainless steel 430 and Aluminium
IK rating (2) IK10 (HMI: IK08)
Environmental
IP rating IP54
Enclosure Type Indoor and outdoor
Maximum operating altitude Up to 2000 m
Temperature range -35 °C to +55 °C (de-rating characteristic applies from 40 °C)
Operating humidity 20-95 % Rh non-condensing
Noise level <75 dB(A) at 1m distance @ 25 °C on front door, at full power
Interface
Screen Type 15″ LCD high-contrast touchscreen
Languages Standard Language English ( Others available via Software upgrade)
Cellular communication GSM / 4G / LTE
Communication Protocol Open Charger Point Protocol (OCPP) 1.6 (and previous versions)
Authentication methods RFID ( Standards, Cards..), On-screen PIN code authorization
Option: payment terminal; Prepared for ISO 15118 – 2 PnC
RFID system Mifare ISO 14443 A+ B to part 4 and ISO/IEC 15693
Others available on request (NFC, Calypso, Ultralight, PayPass, HID; and more)
Energy metering Ready for Eichrecht/PTB and MID compliancy for AC and DC outlets
Emergency stop button type On request
Standards and certification
Declaration of Conformity CE
Low voltage Directive EN 61851-1:2011, EN 61851-23:2014, EN 61851-1:2010, IEC 61851-1:2010. IEC 61851-23:2014, EN IEC 62311:2020
EMC EN IEC 61000-6-1: 2019, EN 61000-6-4:2007+A1, IEC 61851-21-2_2021, EN 301489-1 v1.9.2, EN 301489-34 V1.4.1
RED EN 300330 V2.1.1:2017, EN 301908-13 V13.1.1.2019, EN 301489-1 V2.2.3:2019, EN 50364:2010, EN 301489-3
V2.1.2:2021, EN 301489-52 V1.1.2:2020, EN IEC 62311:2020, EN 301908-2 V13.1.1:2020
Additional compliance with
standards (3)
IEC 62196-2, IEC 62196-3
Communication to the EV DIN 70121, ISO 15118-2 Plug’n’Charge (4) DIN 70121, ISO 15118-2 Plug’n’Charge (4),
CHAdeMO 1.2
