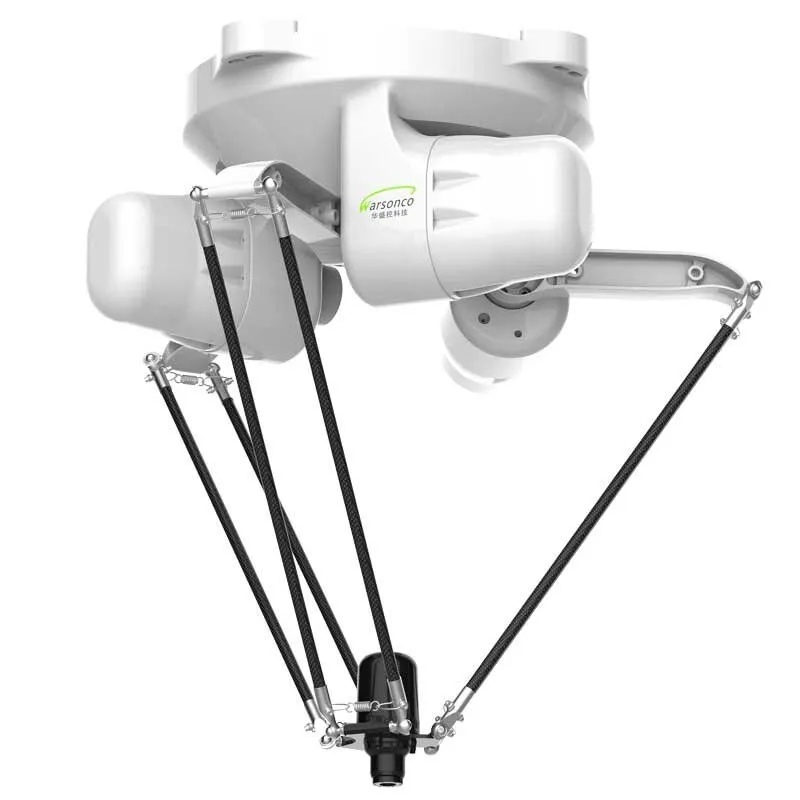

Delta Robot D Serial

Description:

Our precise Delta Robots can be applied in any cases involving items picking and placing.
Not sure if our robots can fulfill your tasks?
You can issue a request on robot testing to check if our robot can pick and place your items as you want.

Hot Line

111-0000-1111

Product Introduction

Brief Specs:

Productivity: Up to 180 P/M per robot

Accuracy: -/+ 0.01mm

Main Specs:

Model No.	WSC-600D	WSC-800D	WSC-1000D	WSC-1200D	WSC-1400D
X, Y Range	600mm	800mm	1000mm	1200mm	1400mm
Z Range	200 mm	250 mm	300 mm	350 mm	400 mm
Rotation axis	±360°	±360°	±360°	±360°	±360°
Rated Load	3KG	3KG	3KG	3KG	5KG
Max Load	5KG	5KG	5KG	5KG	8KG
PlayLoad 0.1KG	0.34s	0.34s	0.42s	0.42s	0.44s
PlayLoad 1KG	0.38s	0.38s	0.49s	0.49s	0.53s
Repeat Positioning Accuracy(mm)	± 0.1 mm	± 0.1 mm	± 0.2 mm	± 0.2 mm	± 0.2 mm
Angular Positioning Accuracy	＜0.05°	＜0.05°	＜0.05°	＜0.05°	＜0.05°
Power Supply	200-240V 50/60Hz	200-240V 50/60Hz	200-240V 50/60Hz	200-240V 50/60Hz	200-240V 50/60Hz
Power	3.5KW	3.5KW	3.5KW	3.5KW	3.5KW
Noise Level	＜75db	＜75db	＜75db	＜75db	＜75db
Protection	IP54	IP54	IP54	IP54	IP54
Working Temperature	1～40°C	1～40°C	1～40°C	1～40°C	1～40°C
Humidity Range	5%～90%(No Condensation)	5%～90%(No Condensation)	5%～90%(No Condensation)	5%～90%(No Condensation)	5%～90%(No Condensation)
Life Span	20,000Hours +	20,000Hours +	20,000Hours +	20,000Hours +	20,000Hours +
Installation	Inverted	Inverted	Inverted	Inverted	Inverted
GW	73KG	73KG	74KG	74KG	78KG
1-3rd Axis Motor	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
1-3rd Axis Reducer/Gearbox	Harmonic/Nidec	Harmonic/Nidec	Harmonic/Nidec	Harmonic/Nidec	Harmonic/Nidec
Fourth Axis motor	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
Fourth Reducer/Gearbox	LeaderDrive	LeaderDrive	LeaderDrive	LeaderDrive	LeaderDrive
Controller/PLC	KEBA	KEBA	KEBA	KEBA	KEBA
HMI	KEBA	KEBA	KEBA	KEBA	KEBA
