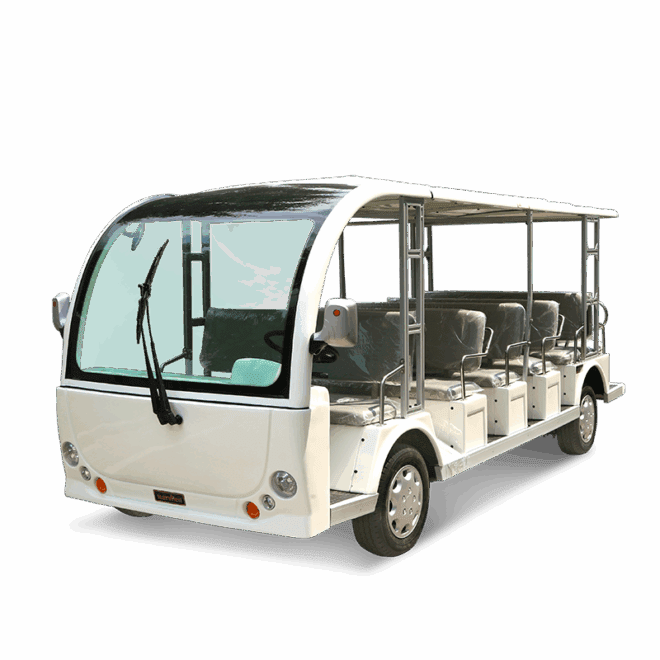

23 Seater Electric Sightseeing Bus DN-23
23 Seater Electric Sightseeing Bus DN-23
Smart steering system
Rustproof body structure
Consistent and efficient electric drive-train
1. Standard color: White; arractive design and powerful in appearance, with strong carrying capacity and lower noise;
2. Standard feature: Front and Rear lights; Rear View mirrors; Electric Horn; Rustproof body structure;
3. Small turning radius; and smart steering system; Whole style steel rear axle;
4. Can be easy modified to transportation vechicles;
5. CE certificate for whole carts;
6. Import main parts: Maintenance free batteries and Curtis controller(From USA);
7. Four wheels hydraulic braking system and independent parking brake.
Hot Line
111-0000-1111
| Max. speed (km/h) | 30km/h |
| Front wheel tread | 1535mm |
| Battery | 6V * 12 PCS * 2 Sets |
| Motor | 72V 9KW AC Motor |
| Controller | 72V 550A Controller |
| Charger | On board charger |
| Suspension | Front shock absorber and leaf spring front suspension |
| Steering | Recirculating-ball steering, with steering power |
| Brake System | Four wheels hydraulic braking system ， with steering power |
| Passenger capacity | 23 person |
| Range (loaded) (km) | 120 km |
| Wheelbase | 3420mm |
| Rear wheel tread | 1520mm |
| Minimum turning radius (m) | 8m |
| Brake range (m) | ≤6 |
| Max climbing ability (loaded) | 15% |
| Overall dimensions(mm) | 5770×1800×2205 mm |
| Max. loading weight (kgs) | 1955 |
| Curb weight (kgs) | 1600 |
| Ground clearance (mm) | 100 |
| Chassis | Steel |
| Quantity per Container | 1PCS/20FT,2PCS /40HQ |
| STANDARD CONFIGURATION: | |||
| DESCRPTIONS | REMARKS | ||
| Body | Fiber glass body | ||
| Roof | Steel frame + fiber glass cover | ||
| Windshield | One-piece see-through laminated windshield with wiper | ||
| lights ystem | front lights, tail lights, turing lights, brake lights, fog lights | ||
| mirrors | side mirrors, inner mirror | ||
| Dashboard | speedo meter combined with battery capacity indicator, hours meter, current meter, voltage meter, range meter | ||
| OPTIONAL CONFIGURATION/ACCESSIOIRIES: | |||
| enclosure weather curtains, fan, Sunshade Curtain, Seat belts, Loud speaker, CD player, Solar panel on top, Aluminum rim wheels, Front disc brakes, Warning light system, Bus seat, Safety chain | |||
| COLORS: | |||
| Any colors can be customized per customers | |||
