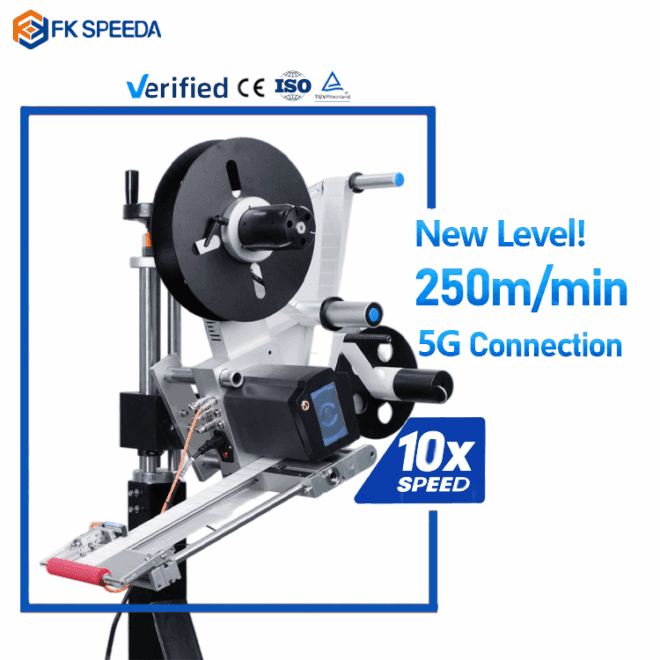

High Speed Labeling Head(0-250m/min)

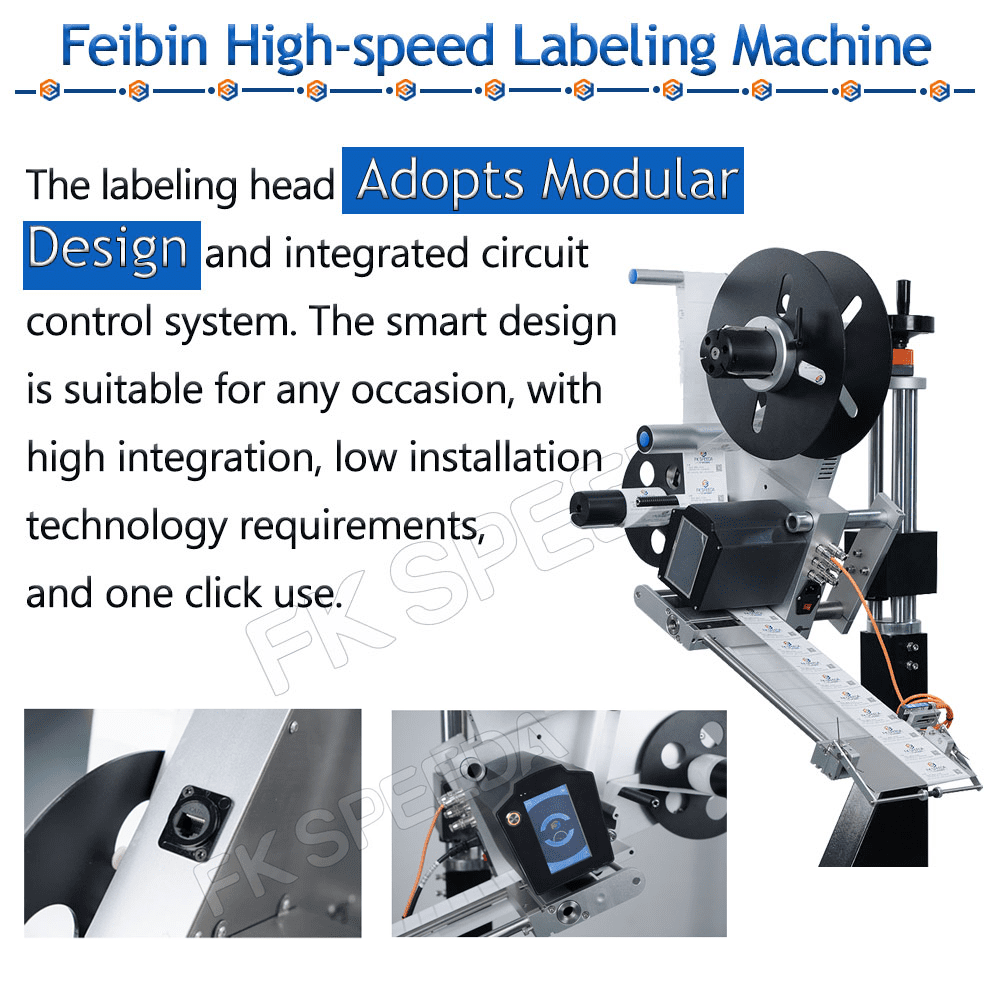

Assembly Line High Speed Labeling Head (China’s first research and development,Only one in China) Feibin High speed labeling head adopts modular design and integrated circuit control system. The smart design is suitable for any occasion, with high integration, low installation technology requirements, and one click use.Machine configuration: Machine control (PLC) (Feibin R & D); Servo motor (Feibin R & D); Sensor (Germany Sick); Object sensor (Germany Sick)/Panasonic; Low voltage (Adaptation)

Hot Line

111-0000-1111

Product Introduction

Characteristic:

*Speed Optional:0-250 m/min;

*Remote Upgrade System

*Support 5G communication Connection

*Feibin Independent Development

*Only One In China

Label specifications	10x 10 mm ~160 x 400mm
Max back paper width	160 mm
Label roll diameter	300 mm (Winding: inward/outward）
Label Reel	Reel：76 mm (Optional: 40 mm、45 mm)
Labeling speed	Optional: 0 – 30 / 50 / 80 /100/ 150 / 250 m/min
Labeling accuracy	± 0.5 mm
Installation method	Left-hand unit • right-hand unit
Label sensor	Fork sensors UF
Labeling method	Adjustable: special flattening brush for label stripping plate; Flattening roller or spring flattening roller; Optional: swinging label stripper
controller	Integrated in labeling machine
Power	220VAC ±10%, 50 / 60 Hz；

1.Appearance ls Different:The high-speed labeling header has a simpler appearanceand it is easier to wear the label,and it is not easy to break the label.

2. Powerful function : Remotely upgrade programs and connect iot systems,data acquisition.

3. Different speed : the normal speed of the ordinary header is 25-30m/min;High-speed header speeds are optional:Optional: 0-30/50/80/100/150/250 m/min.Even higher can be customized.

4. Function Optional : Top/Side/Bottom/Round Labeling

5. Smaller size : high-speed labeling head weight of only 13.5KG, more lightweight,can reduce part ofthe freight
