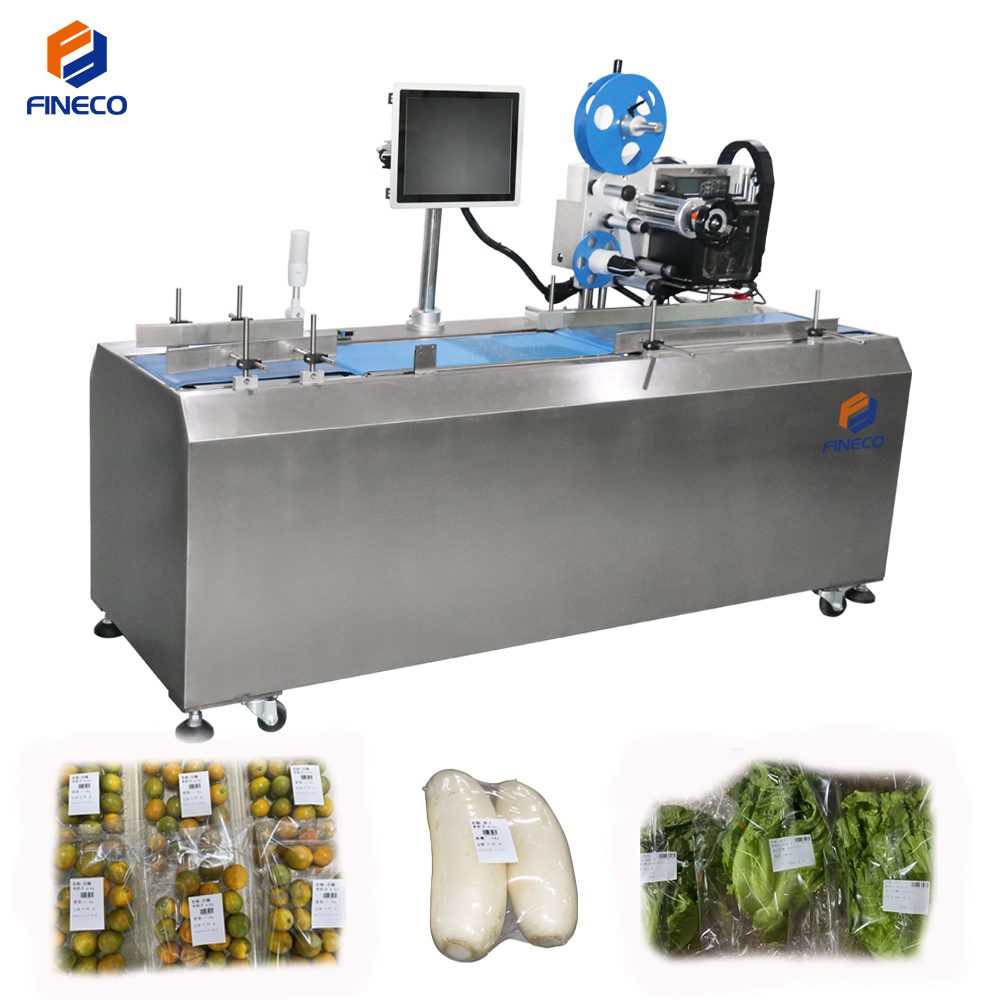

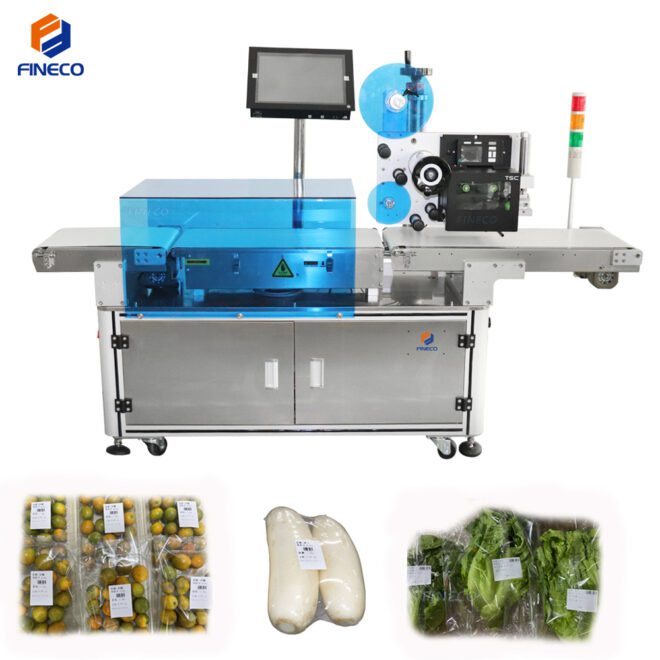

FKP-901 Automatic Fruits and Vegetable weighing printing labeling machine

FKP-901 weight labeling machine can be directly installed in the assembly line or other supporting machinery and equipment, and is widely used in food, electronics, printing, medicine, daily chemical and other industries. It can print and label the products that flow in real time online, and unmanned printing and labeling production; Print content: text, numbers, letters, graphics, bar codes, two-dimensional codes, etc.weight labeling machine Suitable for fruits, vegetables, boxed meat real-time printing weighing labeling. Support custom labeling machine according to the product.

Hot Line

111-0000-1111

Product Introduction

Label Production Requirements

1. The gap between the label and the label is 2-3mm;

2. The distance between the label and the edge of the bottom paper is 2mm;

3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);

4. The inner diameter of the core is 76mm, and the outer diameter is less than 280mm, arranged in a single row.

Labeling Process：

Product (connected to the assembly line) —> product delivery —> product testing —> labeling.

Machine Parameters:

Weighing range: 3g~5000g

Weighing accuracy within: ±2-3g

Table size buffer section: long 700mm; 300 mm wide;

Weighing section: 700mm long; 300 mm wide;

Size of the product to be tested: 500mm long * 280mm wide

Labeling accuracy: ±3mm without product label error;

Labeling speed: 20 / min

Major Dispositions

main mechanism	Name of organization	PCS	main materials
	electricity box	1 set	Sheet metal paint
	Label mechanism	1 set	Aluminum alloy, upper silver guide
	Conveying	1 set	Aluminum alloy
Main Electrical Specifications	PLC	1 set	Japan
	Air cylinder	2 set	Taiwan
	Vacuum generator	1 set	Taiwan
	Industrial computer	1 set	FINECO
	Labeling motor	1 set	SHENZHEN
	Weighing sensor	1 set	Germany
	MS weighing module	1 set	FINECO
	Frequency converter	1 set	Germany
	Printer	1 set	Tcs
	Print application	1 set	FINECO
	Pressure Transducer	1 set	Japan
	Pressure Transducer	1 set	Japan
	Conveyor belt	1 set	China
	Photoelectricity	1 set	Germany
	Motor	1 set	China
