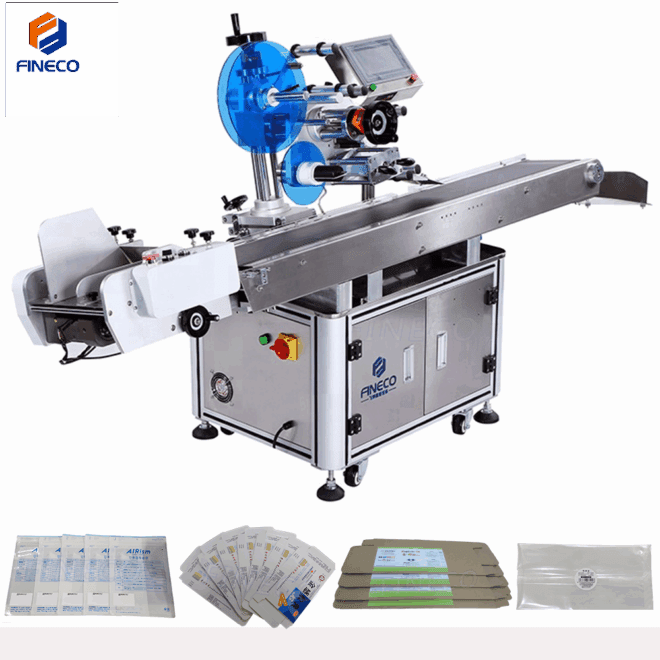

FK812 Automatic Card/Bag/Carton Labeling Machine

① FK812 Aautomatic labeling of card products, automatically deliver the product to the conveyor belt and labeling, apply to card, plastic bag, carton, paper and others slice products, such as thin plastic and thin chip labeling.

② FK812 can achieve full coverage labeling, partial accurate labeling, vertical multi-label labeling and horizontal multi-label labeling, widely used in carton,plastic, electronic,card and printing materials industries.

Working Principle:

① Applicable labels: sticker label, film, electronic supervision code, bar code.

② Applicable products: Products that are required to be labeled on flat, arc-shaped,round, concave, convex or other surfaces.

③ Application industry: Widely used in cosmetics, food, toys, chemical, electronics, medicine and other industries.

④ Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.

Hot Line

111-0000-1111

Product Introduction

Technical Parameters:

Parameter	Date
Label Specification	Adhesive sticker,transparent or opaque
Labeling Tolerance	±0.5mm
Capacity(pcs/min)	40~120
Suit bottle size(mm)	L:40~400 W:20~200 H:0.2~150;Can be customized
Suit label size(mm)	L:15-100;W(H):15-130
Machine Size(LWH)	≈20806951390(mm)
Pack Size(LWH)	≈21307301450(mm)
Voltage	220V/50(60)HZ;Can be customized
Power	820W
N.W(KG)	≈200.0
G.W(KG)	≈365.0
Label Roll	ID:Ø76mm; OD:≤260mm

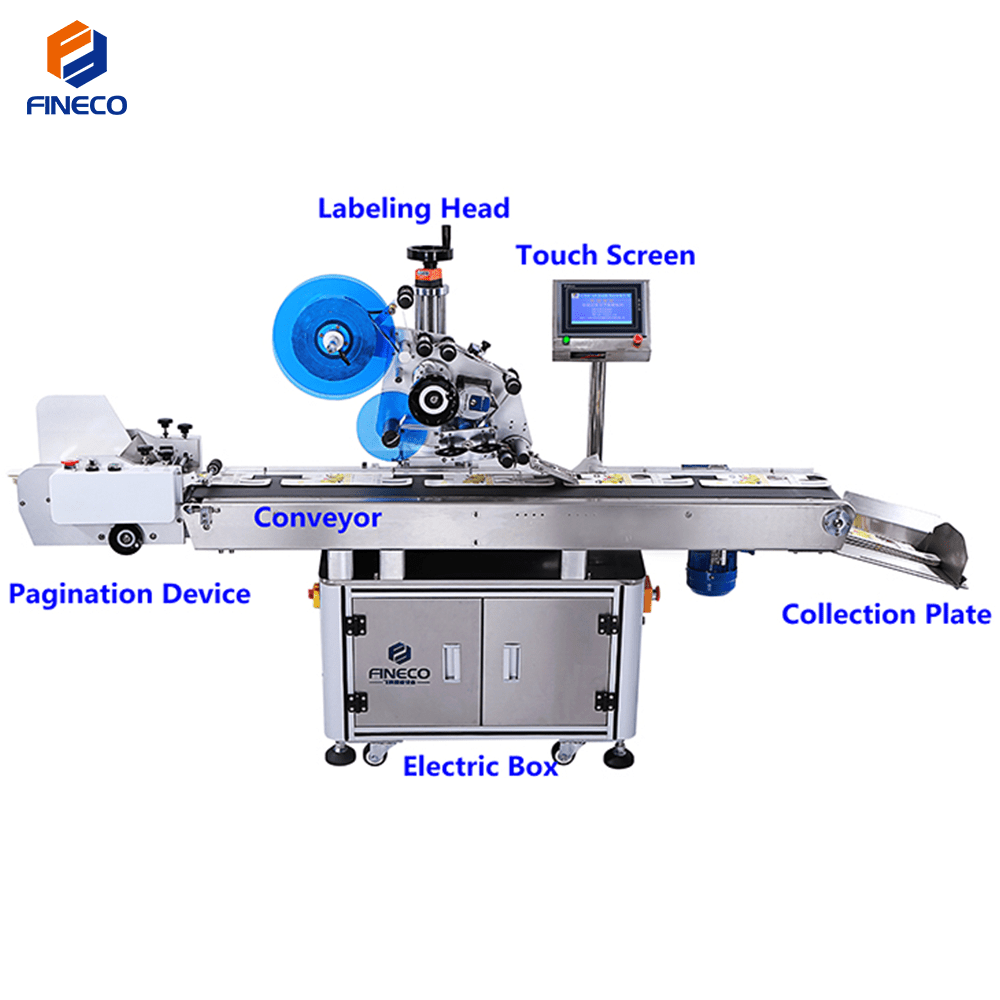

No.	Structure	Function
1	Conveyor	Transmit product

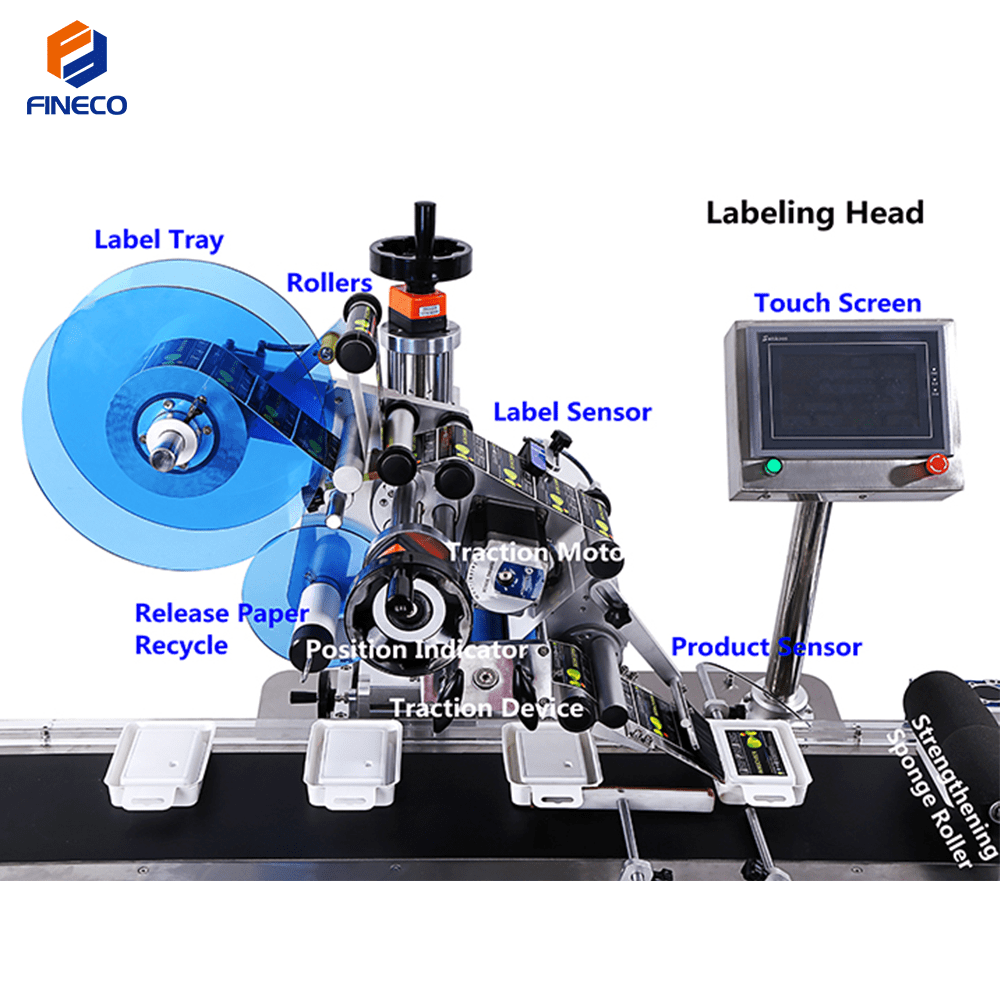

2	Labeling Head	Core of the labeler,including label-winding and driving structure
3	Touch Screen	Operation and setting parameters
4	Collection Plate	Collect the labeled products
5	Strengthening Sponge Roller	Press labeled product to strengthen labeling
6	Main Switch	Open the machine
7	Emergency Stop	Stop the machine if it runs wrong
8	Electric Box	Place electronic configurations

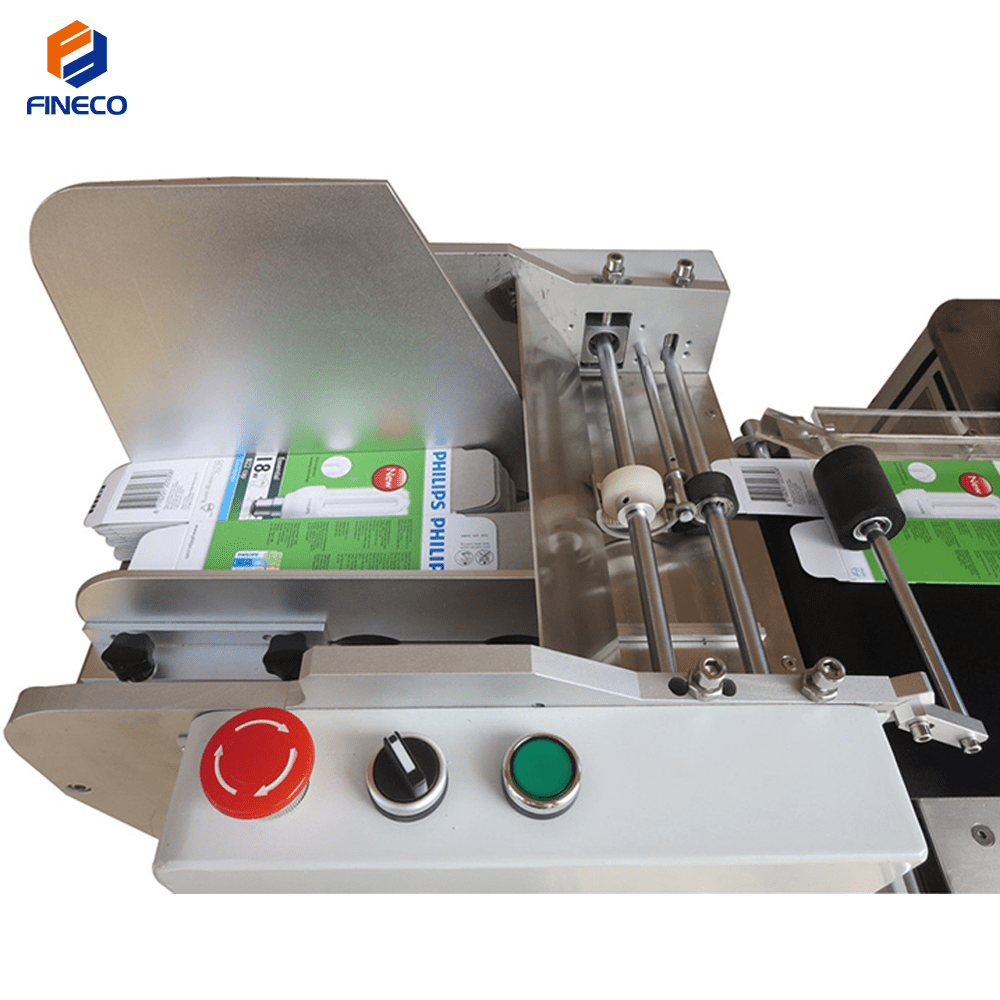

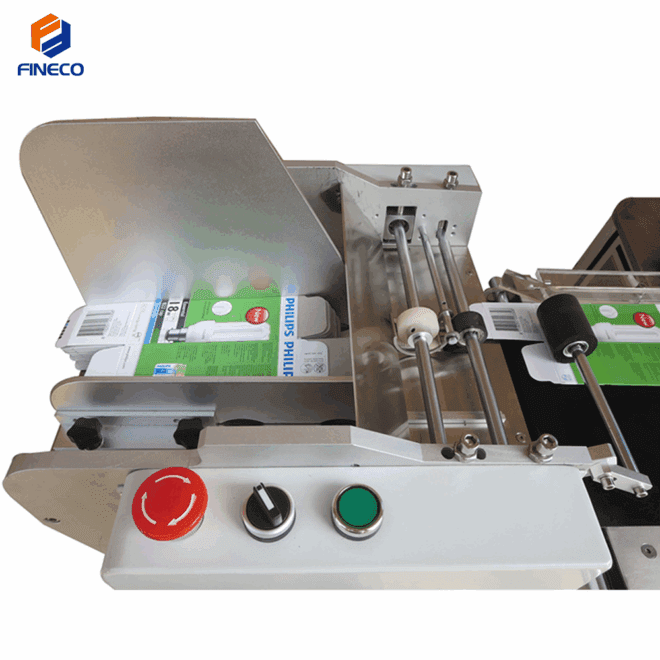

9	Pagination Device	Separate a stack of pouches/cards/…and feed to the conveyor one by one.

Label Production Requirements

1. The gap between the label and the label is 2-3mm;

2. The distance between the label and the edge of the bottom paper is 2mm;

3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);

4. The inner diameter of the core is 76mm, and the outer diameter is less than 300mm, arranged in a single row.

The above label production needs to be combined with your product. For specific requirements, please refer to the results of communication with our engineers!

Features:

1 ) Control System: Japanese Panasonic control system, with high stability and extremely low failure rate.

2 ) Operation System: Color touch screen, directly visual interface easy operation.Chinese and English available. Easily to adjust all electrical parameters and have counting function, which is helpful for production management.

3) Detection System: Using German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor, which are sensitive to label and product, thus ensure high accuracy and stable labeling performance. Greatly saves labor.

4) Alarm Function: The machine will give an alarm when problem occur, such as label spill, label broken, or other malfunctions.

5) Machine Material: The machine and spare parts all use material stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.

6) Equip with a voltage transformerto adapt to local voltage.
