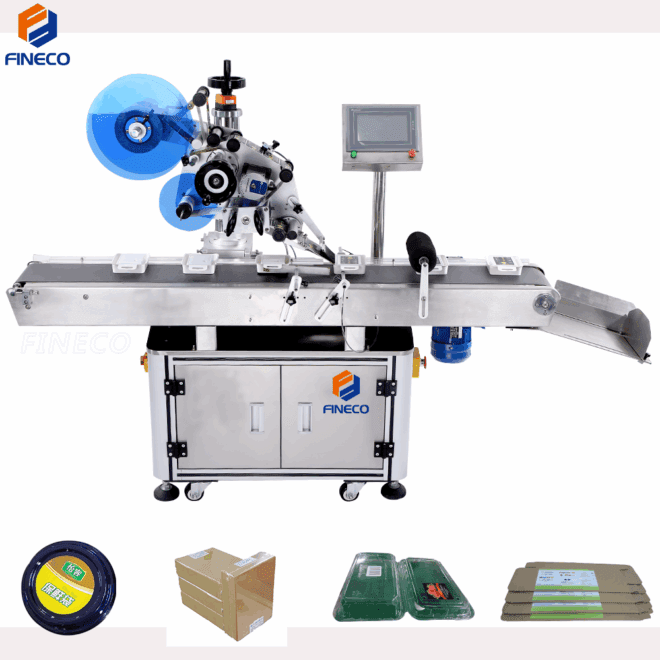

FK811 Automatic Plane Labeling Machine

① FK811 is suitable for all kinds of specifications box,cover,battery,carton and irregular and flat base products labeling,such as food can, plastic cover,box,toy cover and plastic box the shaped like an egg.

② FK811 can achieve full coverage labeling,partial accurate labeling,vertical multi-label labeling and horizontal multi-label labeling, widely used in carton, electronic, express,food and packaging materials industries.

① Applicable labels: sticker label, film, electronic supervision code, bar code.

② Applicable products: Products that are required to be labeled on flat, arc-shaped,round, concave, convex or other surfaces.

③ Application industry: Widely used in cosmetics, food, toys, chemical, electronics, medicine and other industries.

④ Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.

Hot Line

111-0000-1111

Product Introduction

Machine description:

FK811 has additional functions to increase:

1.configuration code printer or ink-jet printer, when labeling, print clear production batch number, production date, effective date and other information,coding and labeling will be carried out simultaneously.

2.configuration printer,change printer contents at any time,realize the function of printing and labeling at the same time.

3.Automatic feeding function (combined with product consideration);

4.Automatic material collection function (combined with product consideration);

5.Increase labeling device;

FK811 Adjust method is simple:

1.Adjust the height of the labeling mechanism,make the labeling knife edge higher 2mm than product height and at the same level.

2.Adjust the conveyor belt and labeling speed on the touch screen so that they want to match.

3. Adjust the position of the sensor so that each label can be completely run out.

4.Adjust the height of the brush , let brush slight touch the labeling surface of the product.

FK811 floor space about 1.87 stere.

Machine Support Customization.

The FK811 labeling machine has simple adjustment methods, high labeling accuracy and good quality, Applicable to the requirements of high precision, high output products,and it is difficult to see the error with the naked eye.

Labeling Specification:

① Applicable labels: sticker label, film, electronic supervision code, bar code.

② Applicable products: Products that are required to be labeled on flat, arc-shaped,round, concave, convex or other surfaces.

③ Application industry: Widely used in cosmetics, food, toys, chemical, electronics, medicine and other industries.

④ Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.

Technical Parameters:

Parameter	Date
Label Specification	Adhesive sticker,transparent or opaque
Labeling Tolerance	±0.5mm
Capacity(pcs/min)	40~80
Suit product size(mm)	L:40~400 W:20~200 H:0.2~150;Can be customized
Suit label size(mm)	L:15-200;W(H):15-130
Machine Size(LWH)	≈19306951390(mm)
Pack Size(LWH)	≈19507301450(mm)
Voltage	220V/50(60)HZ;Can be customized
Power	670W
N.W(KG)	≈195.0
G.W(KG)	≈215.0
Label Roll	ID:Ø76mm; OD:≤260mm

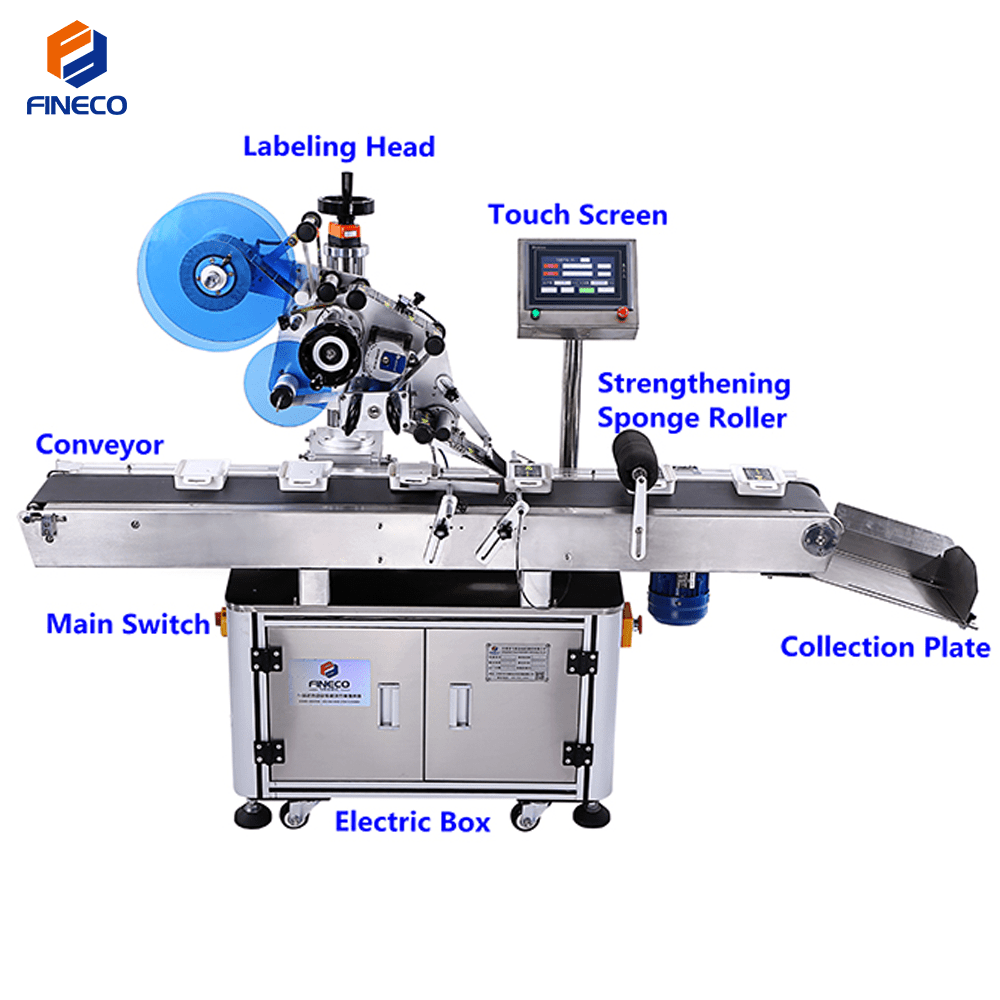

No.	Structure	Function
1	Conveyor	Transmit product

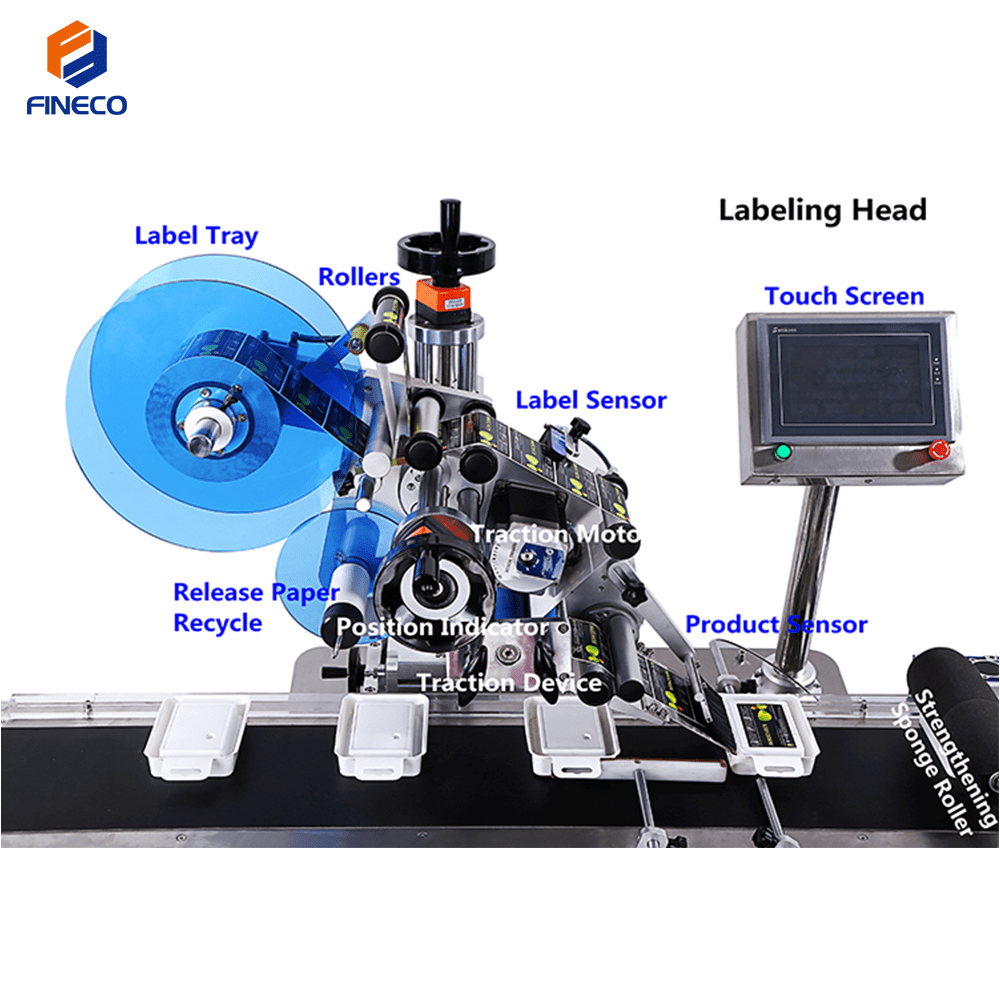

2	Labeling Head	Core of the labeler,including label-winding and driving structure

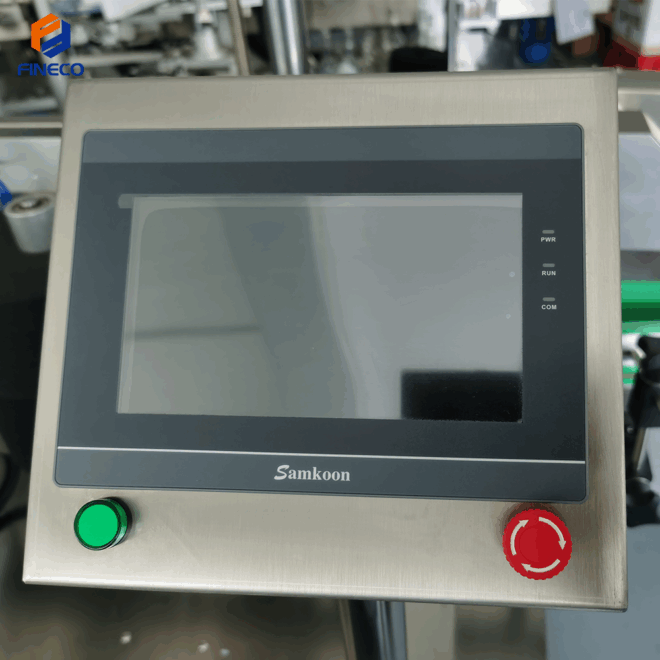

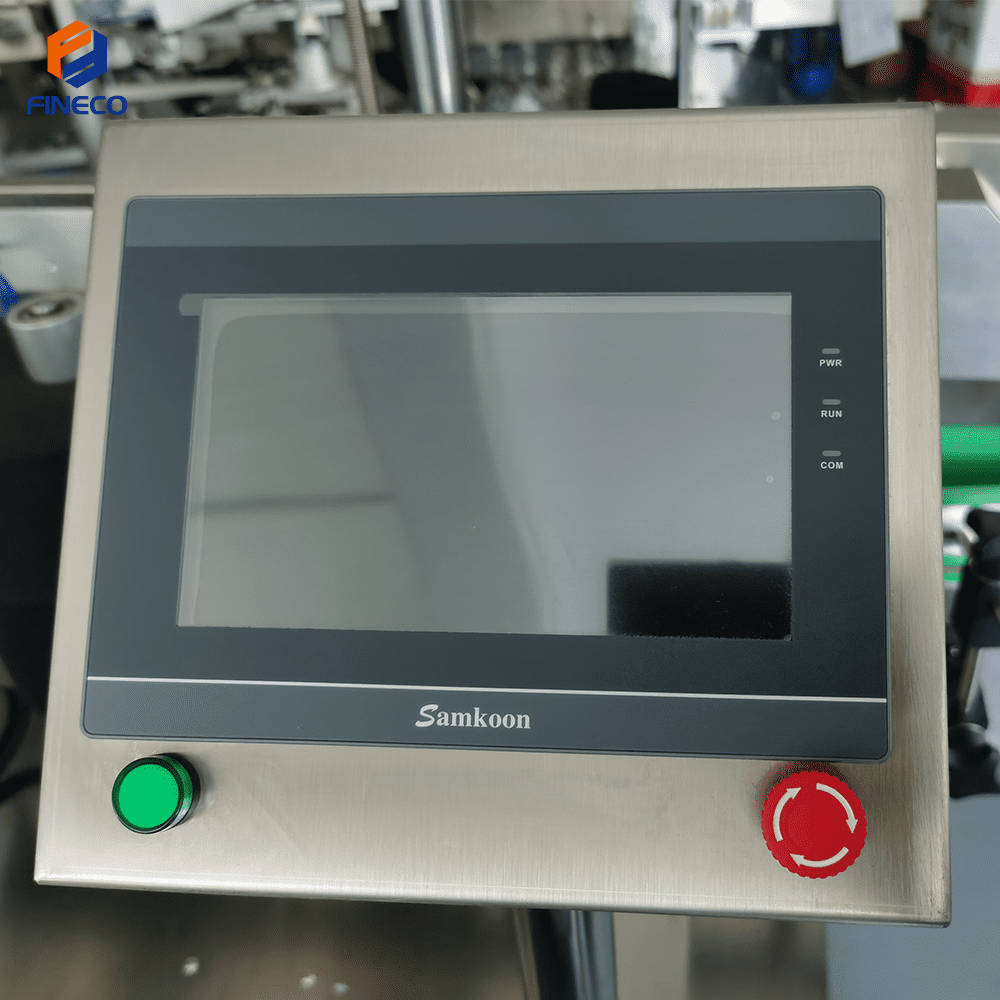

3	Touch Screen	Operation and setting parameters
4	Collection Plate	Collect the labeled products
5	Strengthening Sponge Roller	Press labeled product to strengthen labeling
6	Main Switch	Open the machine
7	Emergency Stop	Stop the machine if it runs wrong
8	Electric Box	Place electronic configurations

Working Principle:

1. Click star on the touch screen.

2. The product placed next to the guardrail, then the conveyor belt will move the products forward.

3. When the sensor detects that the products has reached target location,the machine will send out the label and the brush attaches the label to the product,a labeling process is completed.

Label Production Requirements

1. The gap between the label and the label is 2-3mm;

2. The distance between the label and the edge of the bottom paper is 2mm;

3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);

4. The inner diameter of the core is 76mm, and the outer diameter is less than 280mm, arranged in a single row.

The above label production needs to be combined with your product. For specific requirements, please refer to the results of communication with our engineers!

Features:

1 ) Control System:Japanese Panasonic control system , with high stability and extremely low failure rate.

2 ) Operation System:Color touch screen , directly visual interface easy operation.Chinese and English available . Easily to adjust all electrical parameters and have counting function , which is helpful for production management.

3) Detection System:Using German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor , which are sensitive to label and product , thus ensure high accuracy and stable labeling performance . Greatly saves labor .

4) Alarm Function : The machine will give an alarm when problem occur , such as label spill , label broken , or other malfunctions .

5) Machine Material : The machine and spare parts all use material stainless steel and anodized senior aluminum alloy , with high corrosion resistance and never rust .

6) Equip with a voltage transformerto adapt to local voltage.
