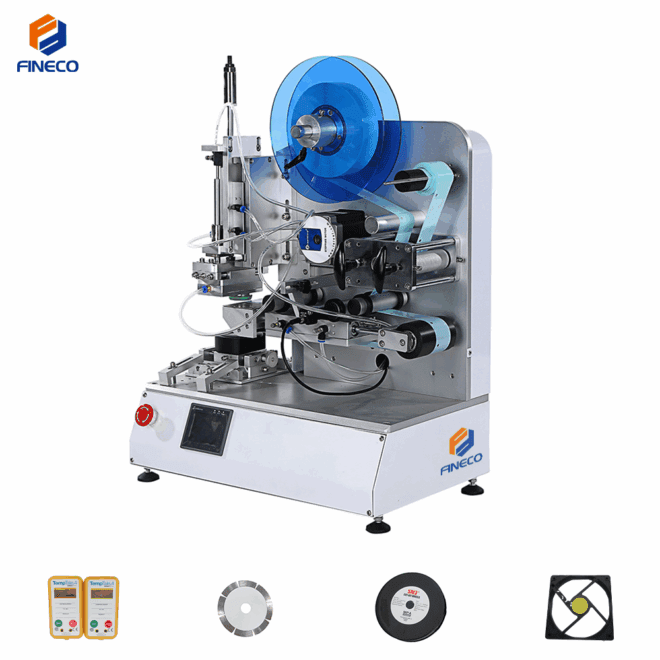

FK618 Semi Automatic High Precision Plane Labeling Machine

① FK618 is suitable for all kinds of specifications square,flat,tiny curved and irregular products high precision and high overlap labeling, such as electronic chip, plastic cover, cosmetic flat bottler, toy cover.

② FK618 can achieve full coverage labeling,partial accurate labeling, widely used in electron, delicate goods, packaging, cosmetics and packaging materials industries.

③ The FK618 labeling machine has additional functions to add options: an optional color-matching tape coding machine can be added to the label head, and the production batch, production date and expiration date can be printed at the same time. Reduce packaging process, greatly improve production efficiency, special label sensor.

Hot Line

111-0000-1111

Product Introduction

② FK618 can achieve full coverage labeling,partial accurate labeling, widely used in electron, delicate goods, packaging, cosmetics and packaging materials industries.

④ FK618 adjustment method is simple: adjustment the high of suction board, adjustment the position of label sensor until one label is all pulled out and install the mould that place the products under the suction board. The adjustment of the process is less than 10 minutes.

⑤ FK618 occupied space about 0.24 stere.

⑥ Machine Support Customization.

The FK618 labeling machine has simple adjustment methods, high labeling accuracy up to ±0.2mm and good quality, and it is difficult to see the error with the naked eye.

Technical Parameters

Parameter	Date
Label Specification	Adhesive sticker,transparent or opaque
Labeling Tolerance	±0.2mm
Capacity(pcs/min)	15~30
Suit bottle size(mm)	L:20~200 W:20~180 H:0.2~85;Can be customized
Suit label size(mm)	L:10-70;W(H):5-70
Machine Size(LWH)	≈600500800(mm)
Pack Size(LWH)	≈650550850(mm)
Voltage	220V/50(60)HZ;Can be customized
Power	330W
N.W(KG)	≈45.0
G.W(KG)	≈67.5
Label Roll	ID:Ø76mm; OD:≤240mm
Air Supply	0.4~0.6Mpa

Working Principle:

1. After the product is placed in the mold, press the switch, and the machine will pull-out the label out.

2. When one label is all pulled out, the label suction board will adsorb the label, and then the label suction board will move down until the label is glued to the product.

3. Label suction board will return to the original, and the machine will restore, a labeling process is completed.

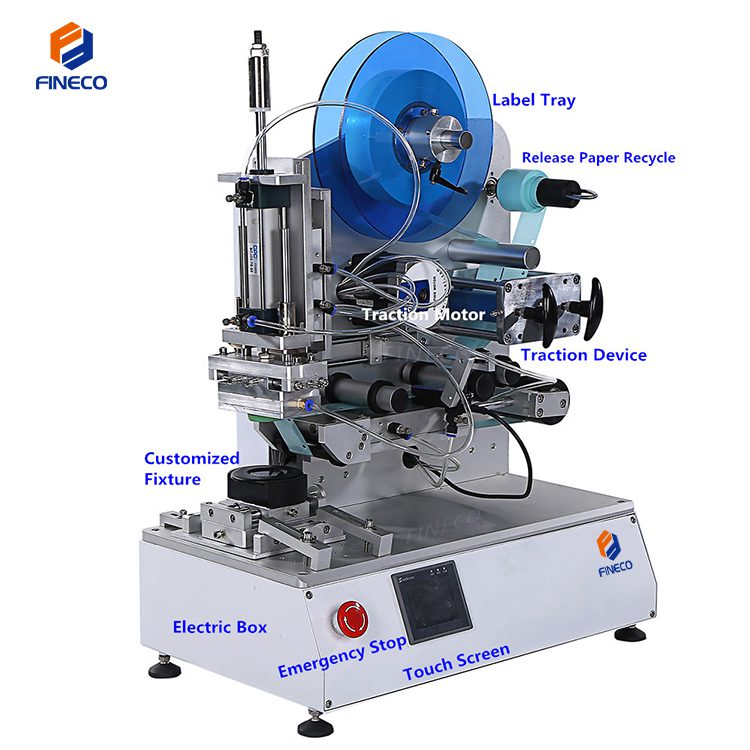

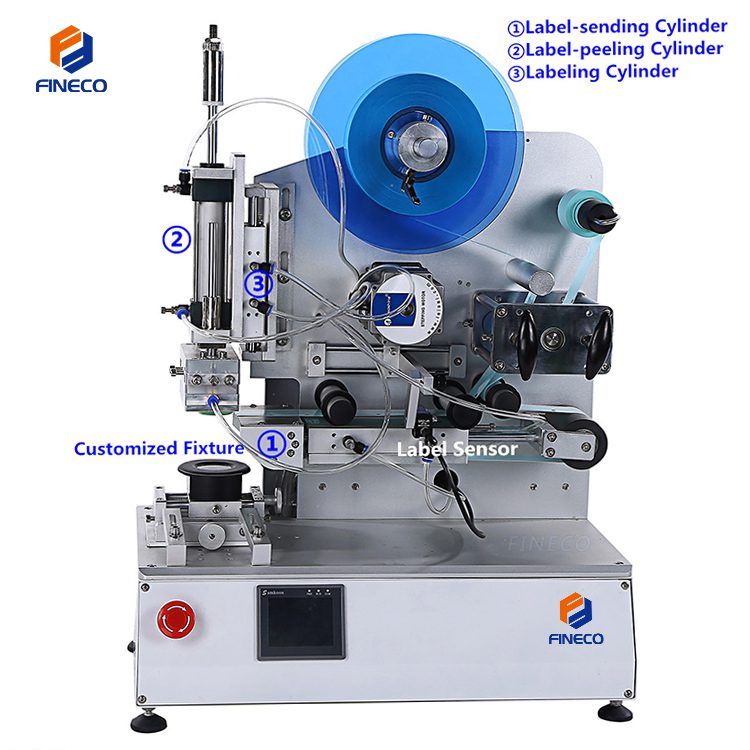

No.	Structure	Function
1	Label Tray	Place the label roll
2	Rollers	Wind the label roll
3	Label Sensor	Detect label
4	Label-sending Cylinder	Send label below the labeling head
5	Label-peeling Cylinder	Drive the labeling head to get label from the release paper
6	Labeling Cylinder	Drive the labeling head to stick label to pointed position
7	Labeling Head	Get label from the release paper and stick to product
8	Product Fixture	Custom-made,fix product while labeling
9	Traction Device	Driven by traction motor to draw the label
10	Release Paper Recycling	Recycle the release paper
11	Emergency Stop	Stop the machine if it runs wrong
12	Electric Box	Place electronic configurations
13	Touch Screen	Operation and setting parameters
14	Air Circuit Filter	Filter water and impurities

Features:

1 ) Control System: Japanese Panasonic control system, with high stability and extremely low failure rate.

2 ) Operation System: Color touch screen , directly visual interface easy operation.Chinese and English available . Easily to adjust all electrical parameters and have counting function , which is helpful for production management.

3) Detection System: Using German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor , which are sensitive to label and product , thus ensure high accuracy and stable labeling performance. Greatly saves labor.

4) Alarm Function: The machine will give an alarm when problem occur , such as label spill , label broken, or other malfunctions.

5) Machine Material: The machine and spare parts all use material stainless steel and anodized senior aluminum alloy , with high corrosion resistance and never rust.

6) Equip with a voltage transformerto adapt to local voltage.
