FK617 Semi automatic Plane Rolling Labeling Machine

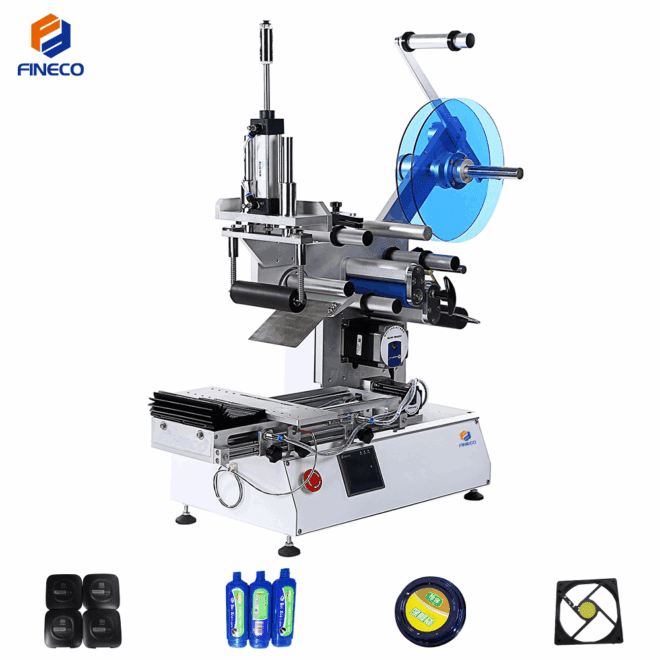

① FK617 is suitable for all kinds of specifications of square, flat, curved and irregular products on the surface labeling, such as packaging boxes, cosmetic flat bottles, convex boxes.

② FK617 can achieve plane full coverage labeling, local accurate labeling, vertical multi-label labeling and horizontal multi-label labeling, can adjust the spacing of two labels, widely used in packaging, electronic products, cosmetics, packaging materials industries.

③ FK617 has additional functions to increase: configuration code printer or ink-jet printer, when labeling, print clear production batch number, production date, effective date and other information, coding and labeling will be carried out simultaneously, improve efficiency.

Hot Line

111-0000-1111

Product Introduction

① FK617 is suitable for all kinds of specifications of square, flat, curved and irregular products on the surface labeling, such as packaging boxes, cosmetic flat bottles, convex boxes.

④ The FK617 adjustment method is simple and only needs to move the height of the press wheel, the position of the label sensor and the slide sensor. The adjustment process is less than 10 minutes, and the labeling accuracy is high, and the error is difficult to be seen by the naked eye. It is the best choice for products with less mass production.

⑤ FK617 floor space about 0.50 stere.

⑥ Machine Support Customization.

Technical Parameters:

Parameter	Date
Label Specification	Adhesive sticker,transparent or opaque
Labeling Tolerance	±0.5mm
Capacity(pcs/min)	15~30
Suit bottle size(mm)	L:20~200 W:20~150 H:0.2~120;can be customized
Suit label size(mm)	L:15-200;W(H):15-130
Machine Size(LWH)	≈960560930(mm)
Pack Size(LWH)	≈1180630980(mm)
Voltage	220V/50(60)HZ;Can be customized
Power	660W
N.W(KG)	≈45.0
G.W(KG)	≈67.5
Label Roll	ID:Ø76mm; OD:≤240mm
Air Supply	0.4~0.6Mpa

Working Principle:

1.Press the switch after the product is already put in, the machine clamps the product.

2.And next the slide moves backwards and next forwards , when the sensor senses that the slide has reached a certain position, the machine sends out the label.

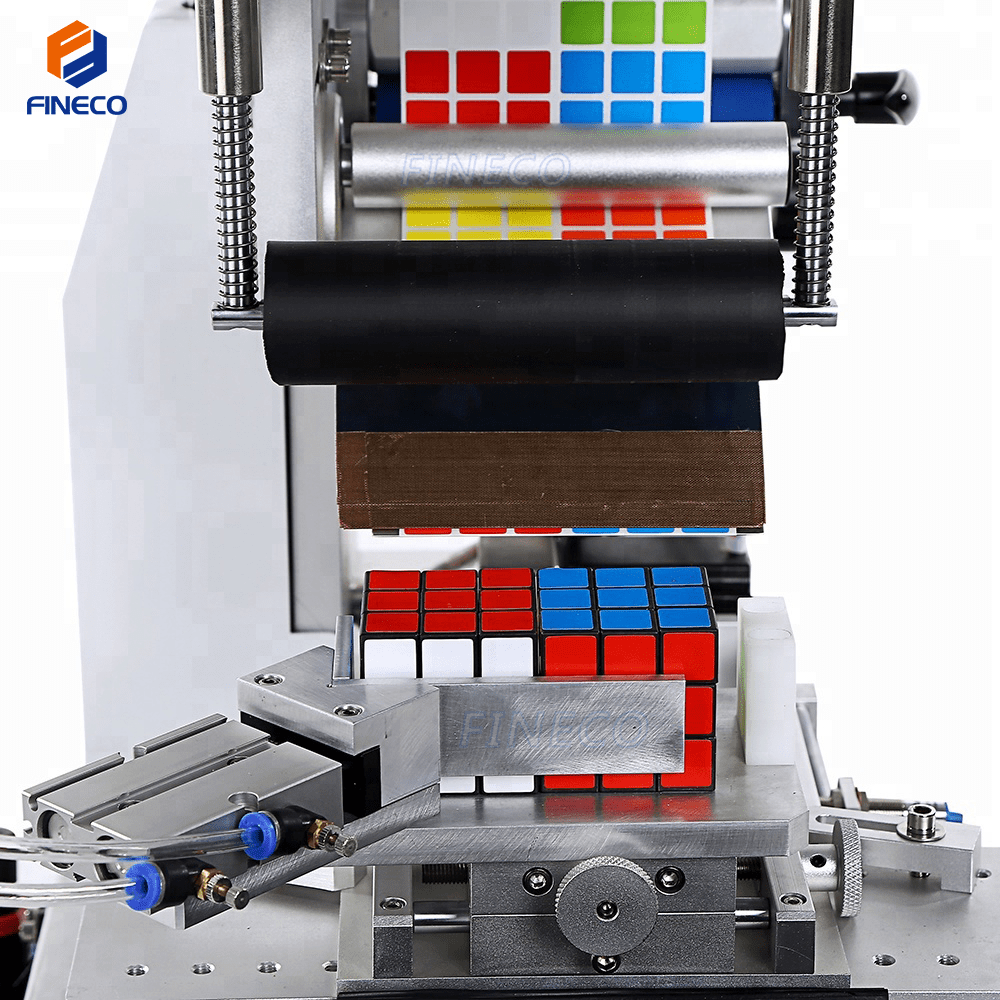

3.Then the wheel presses the label onto the product until one label is all pulled out.

4.Last, release the product and the machine will automatic restore, a labeling process is completed.

This part of the principle for our own research and development, if interested, welcome to consult.

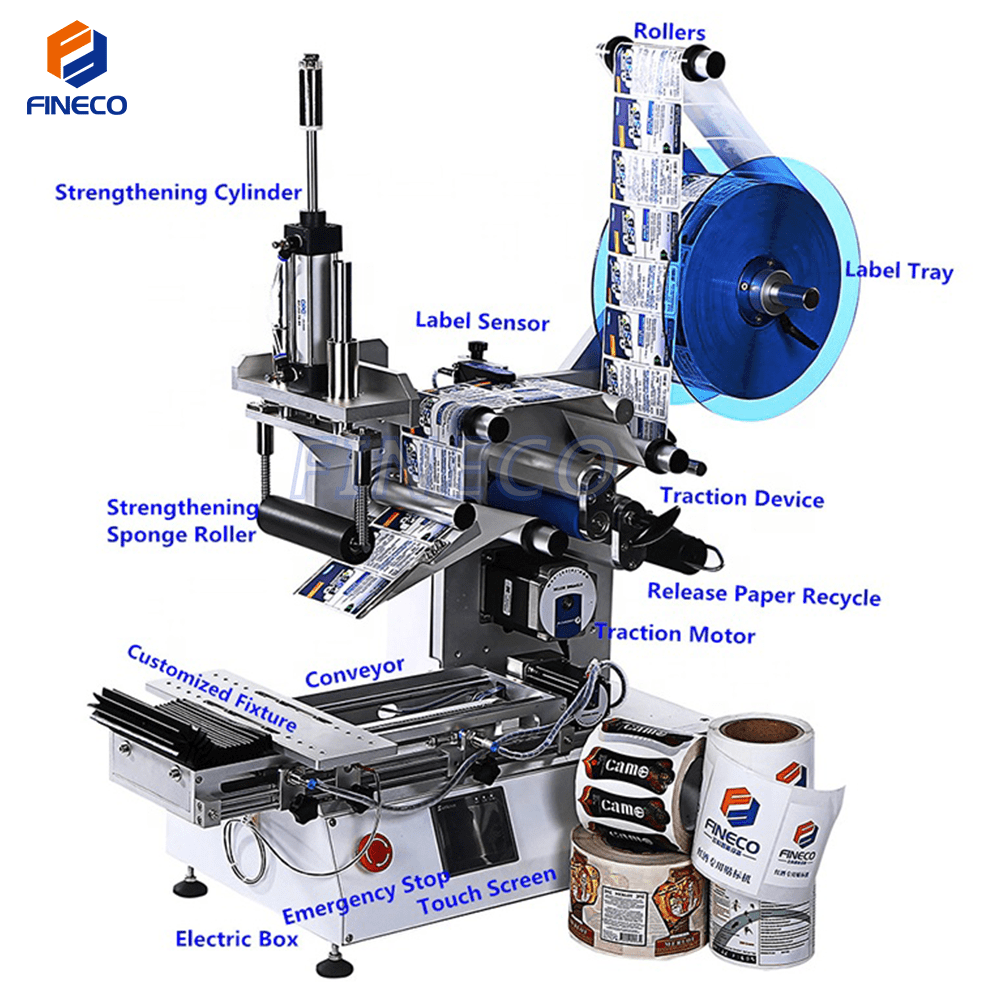

No.	Structure	Function
1	Label Tray	Place the label roll
2	Rollers	Wind the label roll
3	Label Sensor	Detect label
4	Strengthening Cylinder	Drive the strengthening device
5	Strengthening Device	Smooth label while labeling and make it stick tight

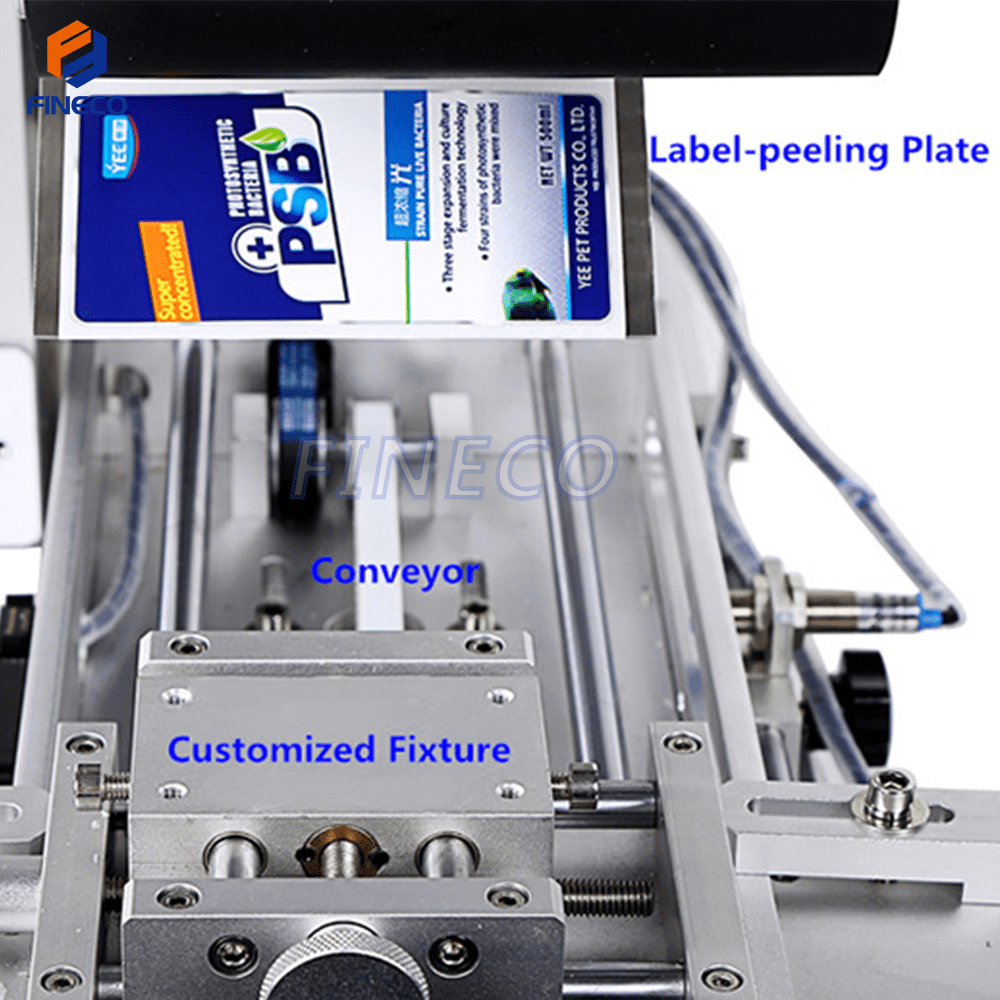

6	Product Fixture	Custom-made,fix product from top and bottom while labeling
7	Conveyor	Driven by traction motor to draw the label
8	Traction Device	Driven by traction motor to draw the label
9	Release Paper Recycling	Recycle the release paper
10	Emergency Stop	Stop the machine if it runs wrong
11	Electric Box	Place electronic configurations
12	Touch Screen	Operation and setting parameters
13	Air Circuit Filter	Filter water and impurities

Features:

1 ) Control System: Japanese Panasonic control system, with high stability and extremely low failure rate.

2 ) Operation System: Color touch screen, directly visual interface easy operation.Chinese and English available. Easily to adjust all electrical parameters and have counting function, which is helpful for production management.

3) Detection System: Using German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor, which are sensitive to label and product, thus ensure high accuracy and stable labeling performance. Greatly saves labor.

4) Alarm Function: The machine will give an alarm when problem occur, such as label spill, label broken, or other malfunctions.

5) Machine Material: The machine and spare parts all use material stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.

6) Equip with a voltage transformerto adapt to local voltage.
