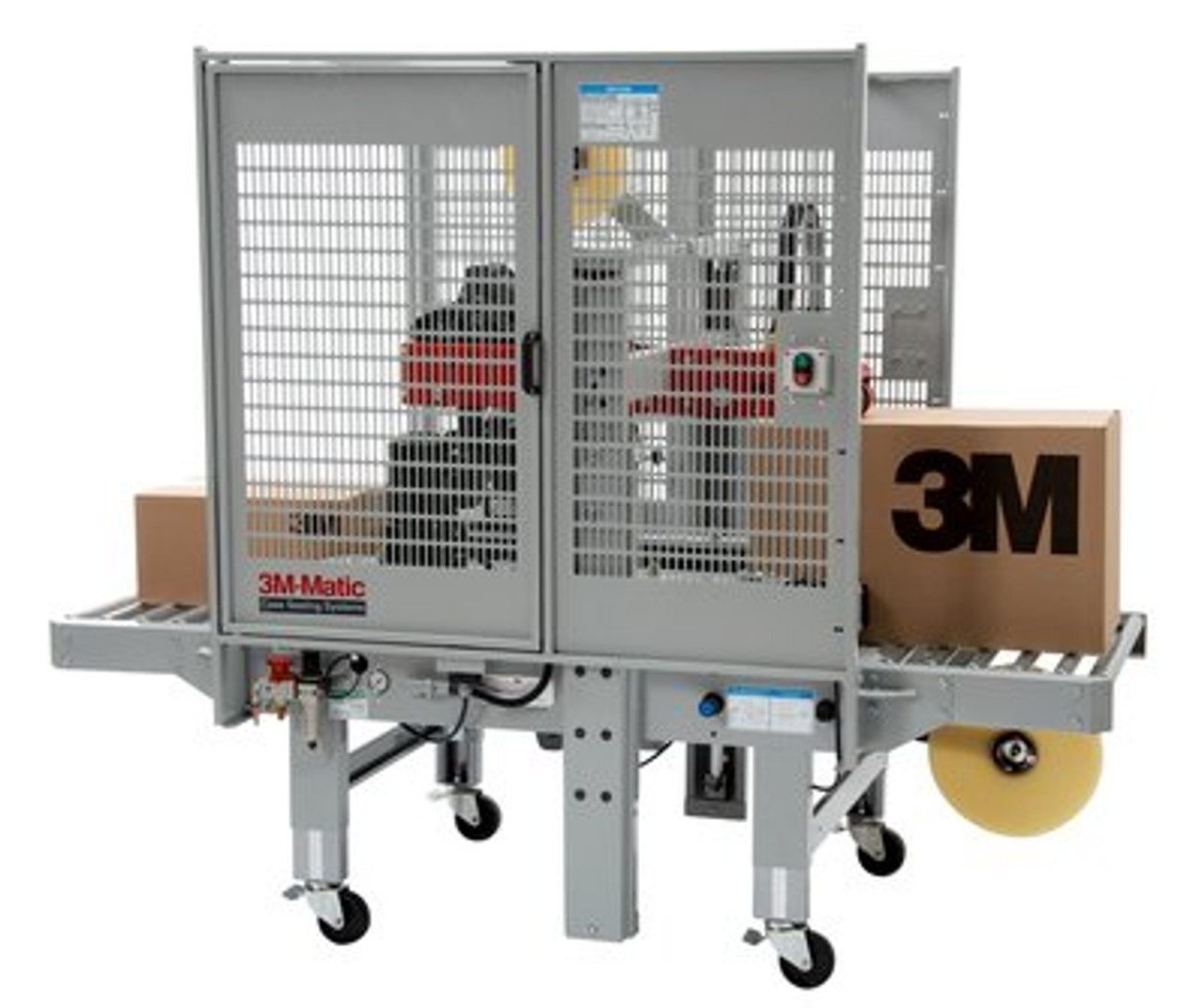

3M-Matic™ Case Sealer 800r with 3M™ AccuGlide™ 3 Taping Head

Case sealer adjusts to handle multiple box sizes
Consistent case taper seals at a rate of up to 15 cases/minute
Side belt drive allows for positive box conveying
Features rugged construction of a 16-gauge welded steel frame and an epoxy paint finish
3M™ AccuGlide™ 3 Taping Heads securely applies tape with low impact, protecting lightweight cases

3M-Matic™ Case Sealer 800r with 3M™ AccuGlide™ 3 Taping Head is a random case sealer that automatically adjusts to different case sizes. We engineered the case taper of this sealing unit to provide consistent performance, sealing at a rate of up to 15 case/minute. This case sealer also features a rugged construction for durability and long-lasting performance.

Consistent, Low Impact Seal for Many Sizes
Engineered to manage multiple box sizes, our 3M-Matic™ Case Sealer 800r with 3M™ AccuGlide™ 3 Taping Head is a random case sealer that automatically adjusts to a variety of case sizes using tape widths of 36-48 mm wide. This case sealer is built with a consistent case taper that seals at a rate of up to 15 cases per minute. We designed this box sealing equipment to seal case lengths of 8 inches or longer, widths of 4.25 -19.5″ and heights from 4.75 — 19.5″. Constructed with a side belt drive and 3M™ AccuGlide™ 3 Taping Heads, this carton sealer allows for positive box conveying and protects lightweight cases with its low impact application.

Recommended Applications
The advantages of the 3M-Matic™ Case Sealer 800r with 3M™ AccuGlide™ 3 Taping Head can be leveraged across many industries, including:

Food and beverage
Medical devices
Pharmaceutical
Electronics
Retail
Manufacturing and distribution centers

Hot Line

111-0000-1111

Product Introduction

Operation Type:

Semi-Automatic

Maximum Cases Per Minute:

Drive System:

Side Belt

Minimum Box Length (in.):

Minimum Box Width (in.):

Minimum Box Height (in.):

Maximum Box Length (in.):

TBD

Maximum Box Width (in.):

Maximum Box Height (in.):

21.25

Uniform or Random:

Random

Typical Properties

Application	Automated Carton Sealing, Box Closure, General and Primary Packaging, Packaging Station
Brand	3M-Matic™
Drive System	Side Belt
Industries	Food and Beverage, General Industrial, Medical, MRO, Paper, Print
Maximum Box Height (Imperial)	21.25 in
Maximum Box Weight (Imperial)	85 lb.
Maximum Box Width (Imperial)	20 in
Minimum Box Height (Imperial)	5 in
Minimum Box Length (Imperial)	8 in
Minimum Box Width (Imperial)	4 in
Operation	Manual
Power Source	Electric
Units per Case	1
