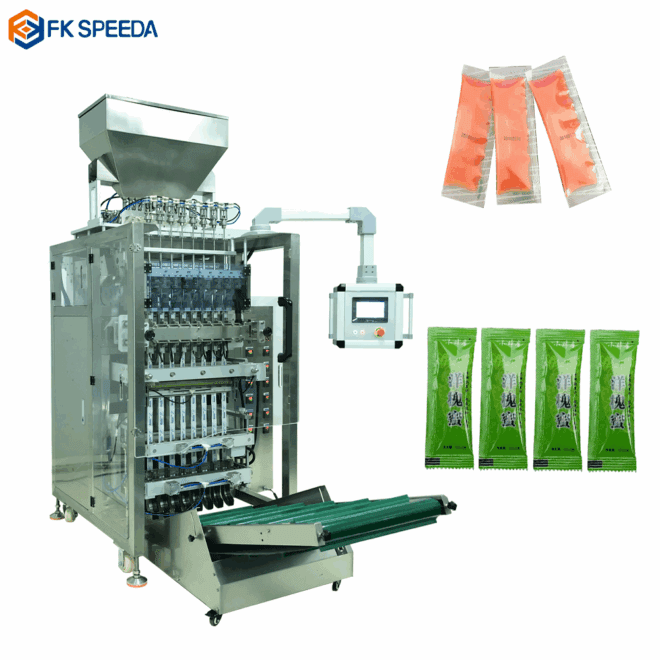

Factory Customized Multi-Lane 4 Lane Automatic Liquid Fruit Jelly Back Sealed Stick Packing Machine
Application:
Automatic multilane liquid sachet/stick packing machine, it is suitable for many kinds of liquid products, such as ketchup, chocolate, mayonnaise, olive oil, chili sauce, honey, drinks, jelly, medicine, shampoo, cream, lotion,mouthwash;cosmetics;sauce;oil;Fruit juice;drink;liquid etc.
+852 9885 7308
Machine Parameter
| Model |
FK300Y |
FK600Y |
FK900Y |
|
| Lanes number |
2-4lanes |
3-10lanes |
4-16lanes |
|
| Capacity |
Max.25-40cycle/min/lane |
|||
| Bag size |
L：50-180mm W:17-75mm |
L::50-180mm W:17-100mm |
L::50-180mm W:17-110mm |
|
| Film width&thickness |
Max.300mm,0.07–0.1mm |
Max.600mm,0.07–0.1mm |
Max.900mm,0.07–0.1mm |
|
| Measuring Method |
1. Piston pump;2.Peristaltis pump;3.Ceramic pump;4.Rotarc pump |
|||
| Sealing type |
3 side sealing |
3 side sealing |
3 side sealing |
|
| Cutting type |
1.Straight cutting;2. Zig zag cutting 3.Round cutting;4.Die-cut |
|||
| Power supply |
50HZ/AC220V/380V/3.5kw |
50HZ/AC220V/380V/5.5kw |
50HZ/AC220V/380V/7.5kw |
|
| Air consumption |
0.8 MPA 0.8m3/min |
0.8 MPA 0.8m3/min |
0.8 MPA 0.8m3/min |
|
| Dimension |
1385*918*2005mm |
1685*1300*2005mm |
1700*1600*2500mm |
|
| Weight |
400kg |
600kg |
950kg |
|
SERVICE
We engage multiple QCs and send the samples with tutorials to the customers as requested, ensuring every buyer is getting their desired products.
